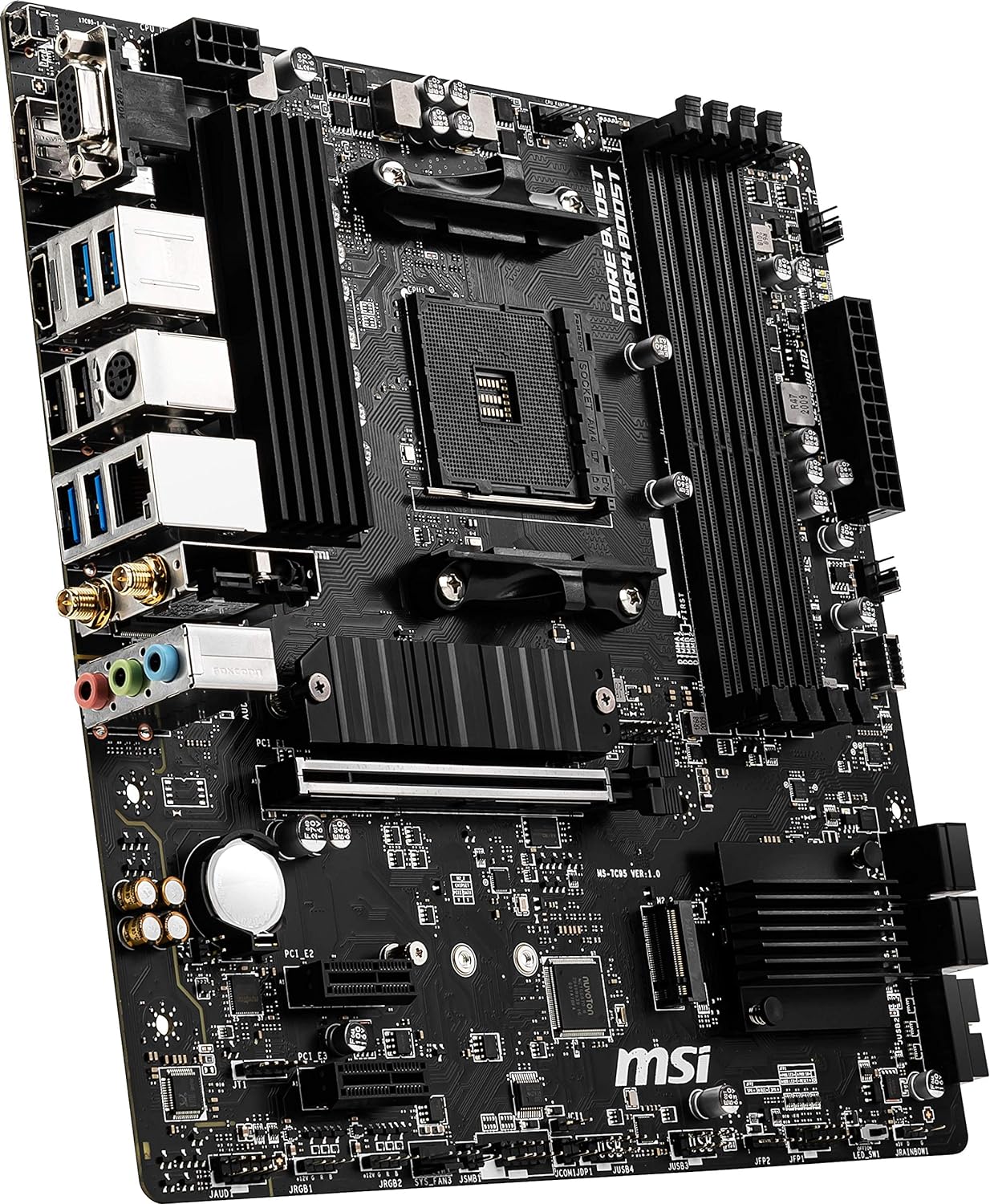

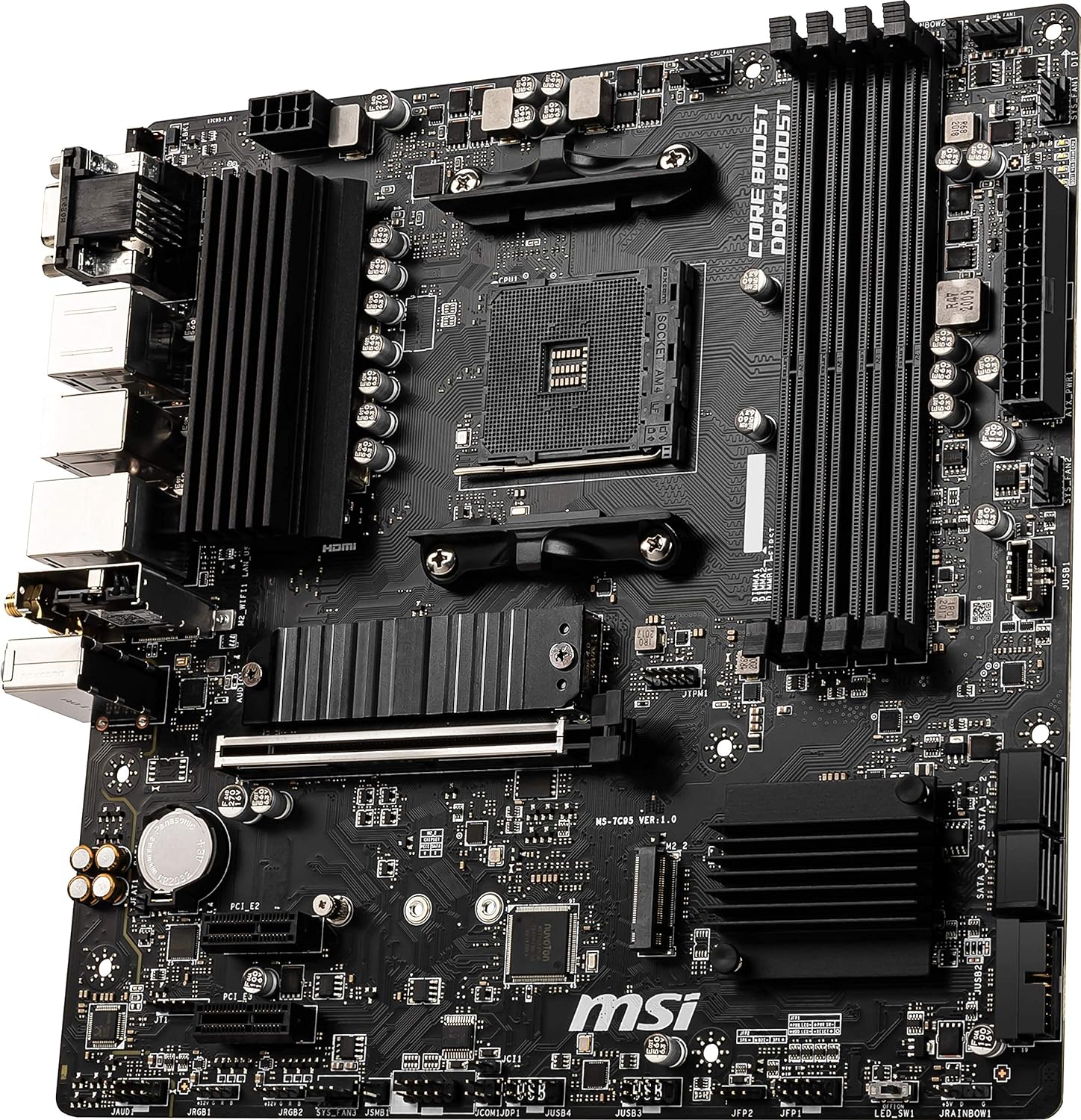

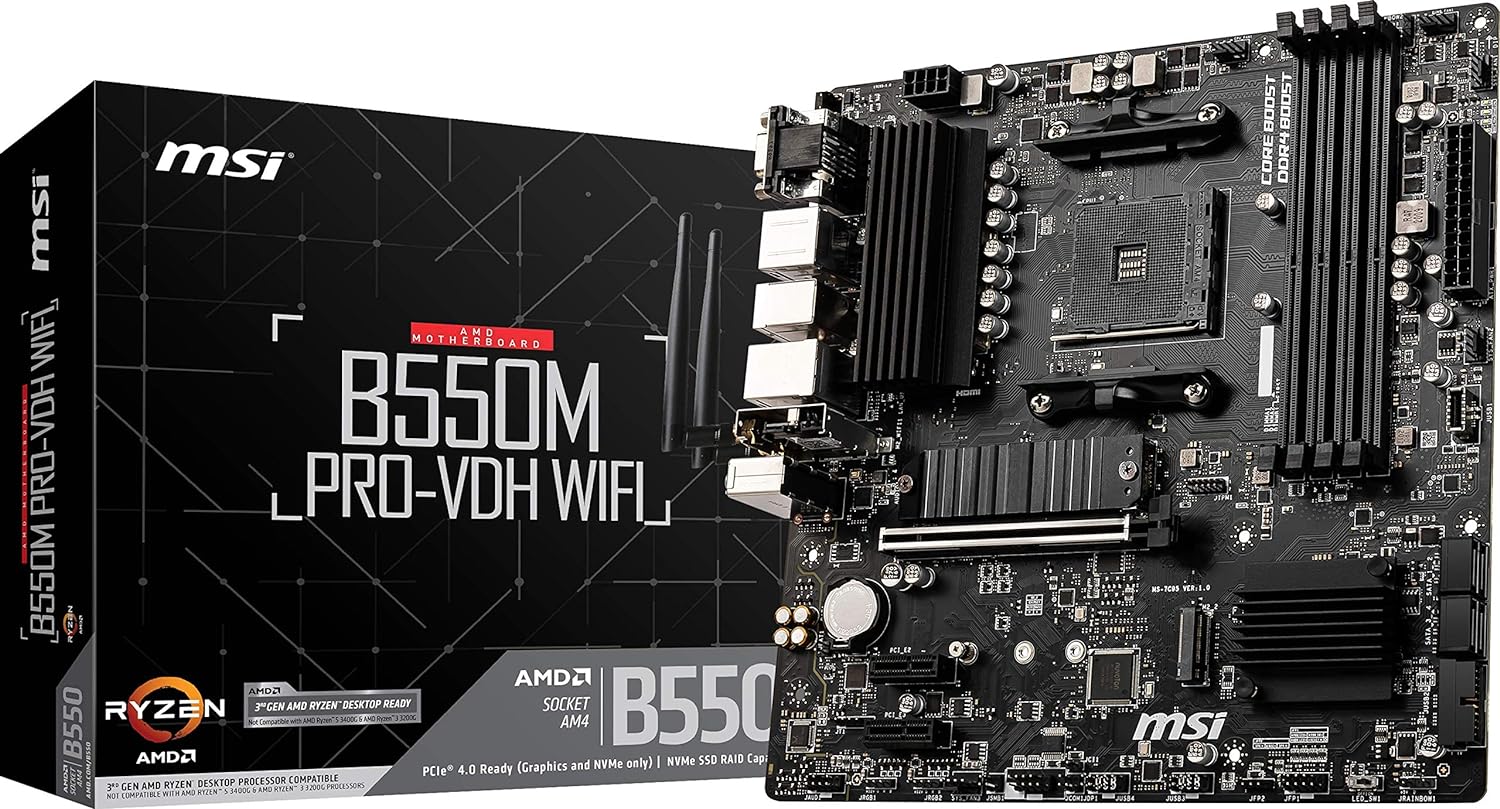

MSI MB B550M PRO VDH WIFI DDR4

Details Chipset: AMD B550 Dimensional format: Micro-ATX format (244 mm x 244 mm) Processor Support: 3rd Gen AMD Ryzen ™ processors, and future AMD Ryzen ™ processors with BIOS update Processor socket: AM4 Memory position: 4x DDR4 Memory support: Supports DDR4 1866/2133/2400/2667/2800/2933/3000/3066/3200 MHz by JEDEC Supports DDR4 2667/2800/2933/3000/3066/3200/3466/3600/3733/3866/4000/4133/4266/4400 + MHz by A-XMP OC MODE Max. RAM size: 128 GB Support for memory type: DDR4 Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory Supports un-buffered memory Graphics card: based on the processor 1x VGA port, supports resolution of 2048x1536 @ 50Hz, 2048x1280 @ 60Hz, 1920x1200 @ 60Hz 1x DisplayPort, supports a maximum resolution of 4096x2160 @ 60Hz 1x HDMI port, supports a maximum resolution of 4096x2160 @ 24Hz Sound card: Realtek® ALC892 Codec Network card: 1x Realtek® 8111HN Gigabit LAN controller Intel® Wireless-AC 3168 Bluetooth 4.2 RAID controller: Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices Expansion slots: 1x PCIe 4.0/3.0 x16 slot (PCI_E1) 2x PCIe 3.0 x1 slots SATA: 4x SATA 6Gb/s ports M.2: 2x M.2 slots (Key M) USB: rear USB ports (total 6) 2x USB 2.0 ports 4x USB 3.2 Gen 1 5Gbps Type-A ports front USB ports (total 7) 1x USB 3.2 Gen 1 5Gbps Type-C port 2x USB 3.2 Gen 1 5Gbps ports 4x USB 2.0 ports Internal ports: 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 3x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x Chassis Intrusion connector 2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 1x TPM module connector 1x Clear CMOS jumper External ports: VGA PS/2 Keyboard/Mouse 1x LAN Flash BIOS Button DisplayPort HDMI 2x USB 2.0 4x USB 3.2 Gen 1 5Gbps Type-A Wi-Fi Antenna connectors 3x Audio jacks
