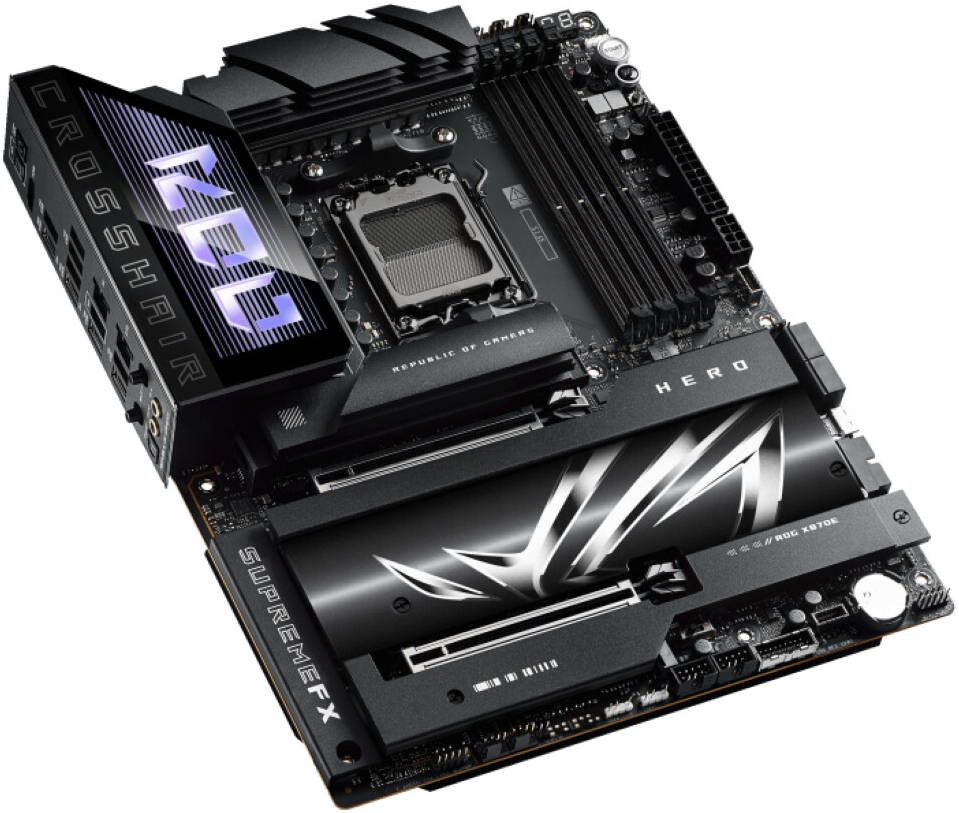

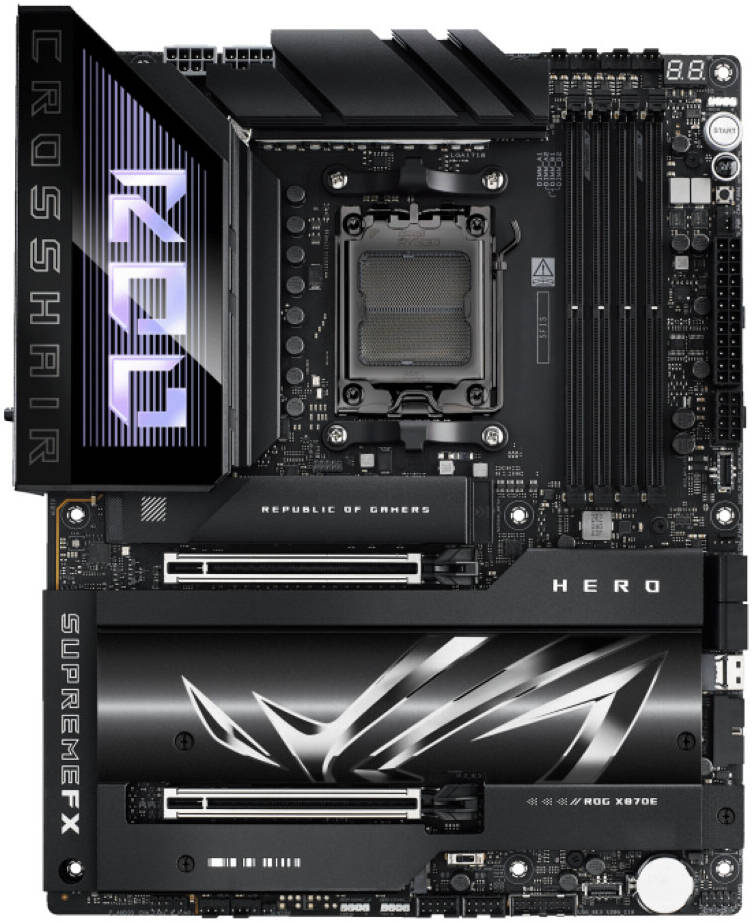

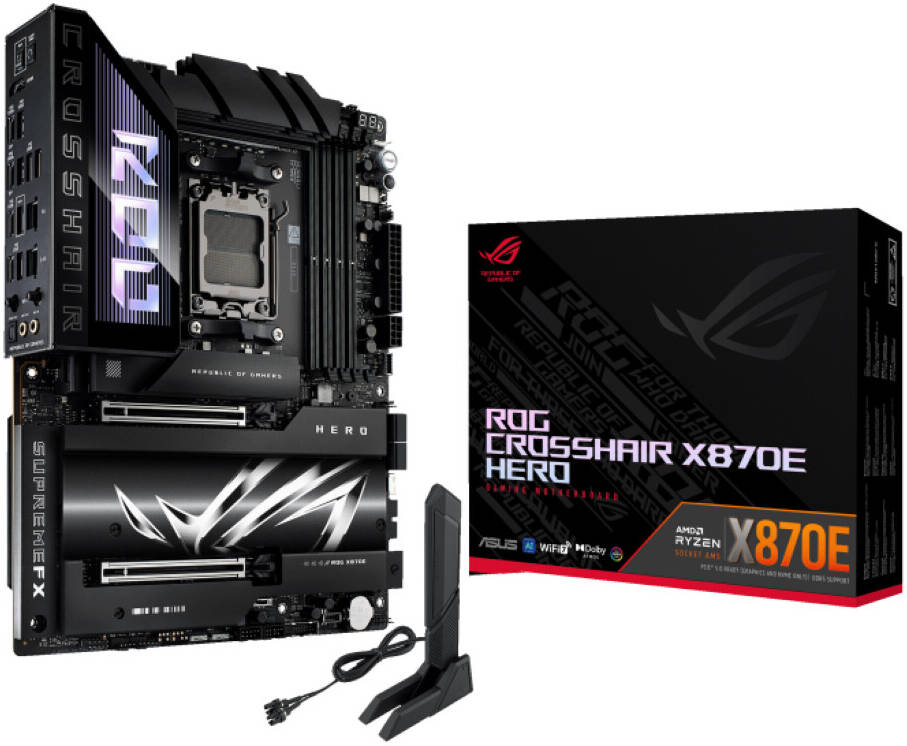

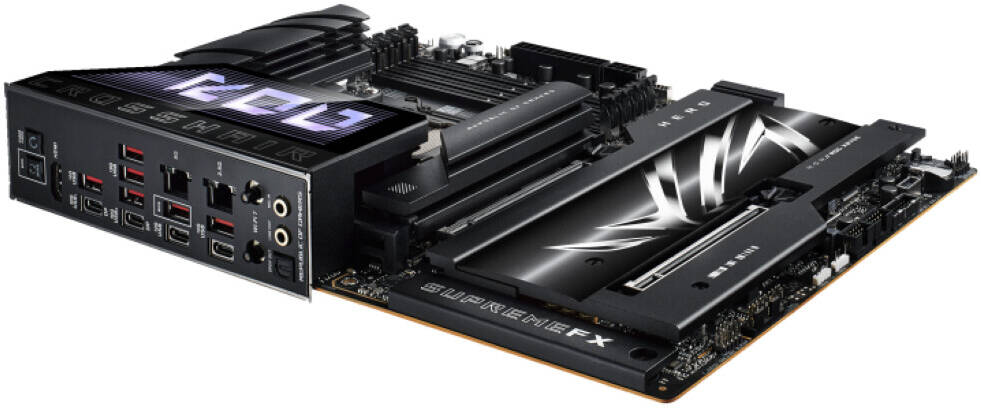

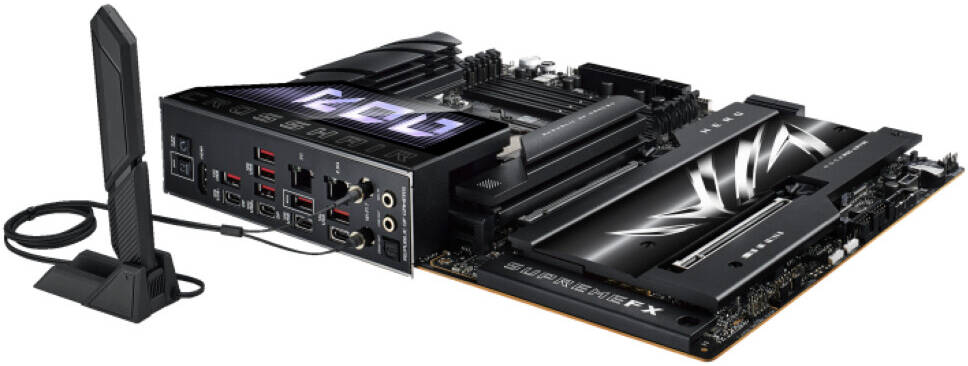

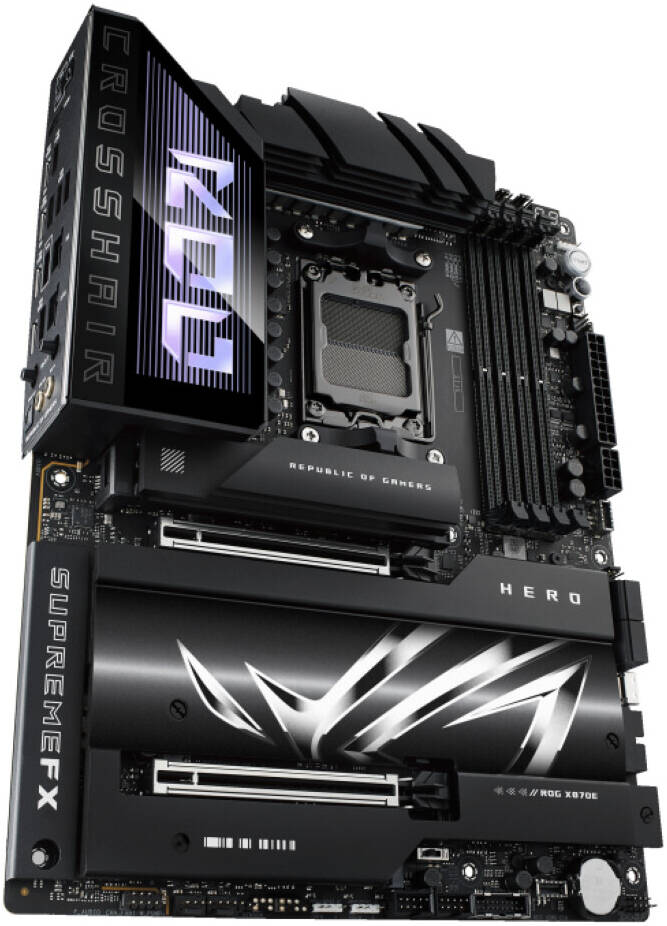

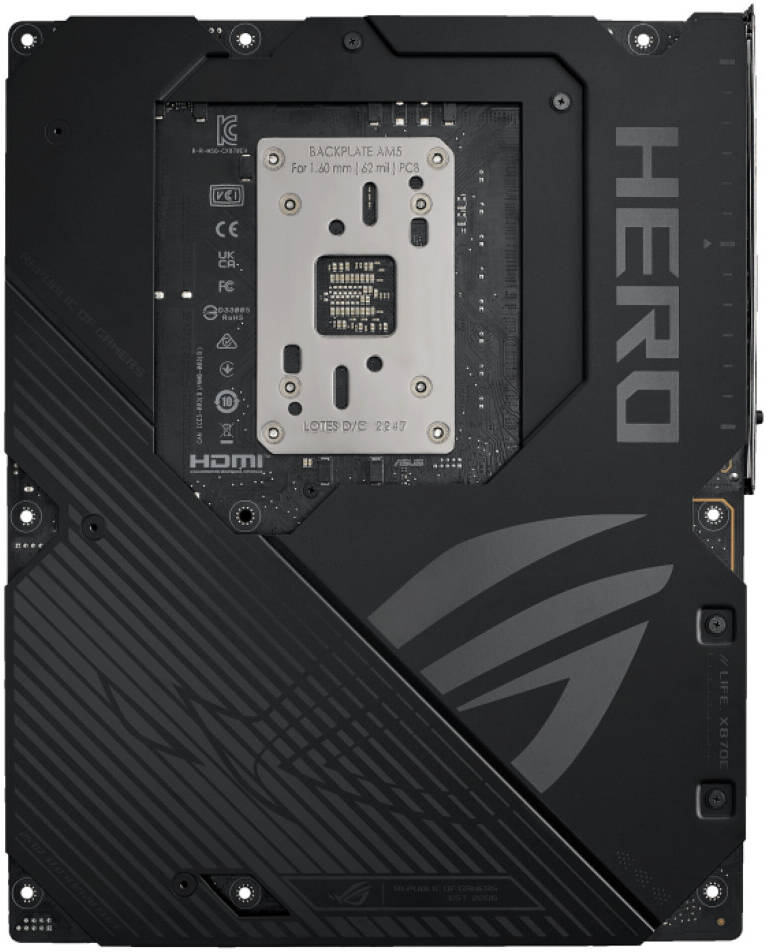

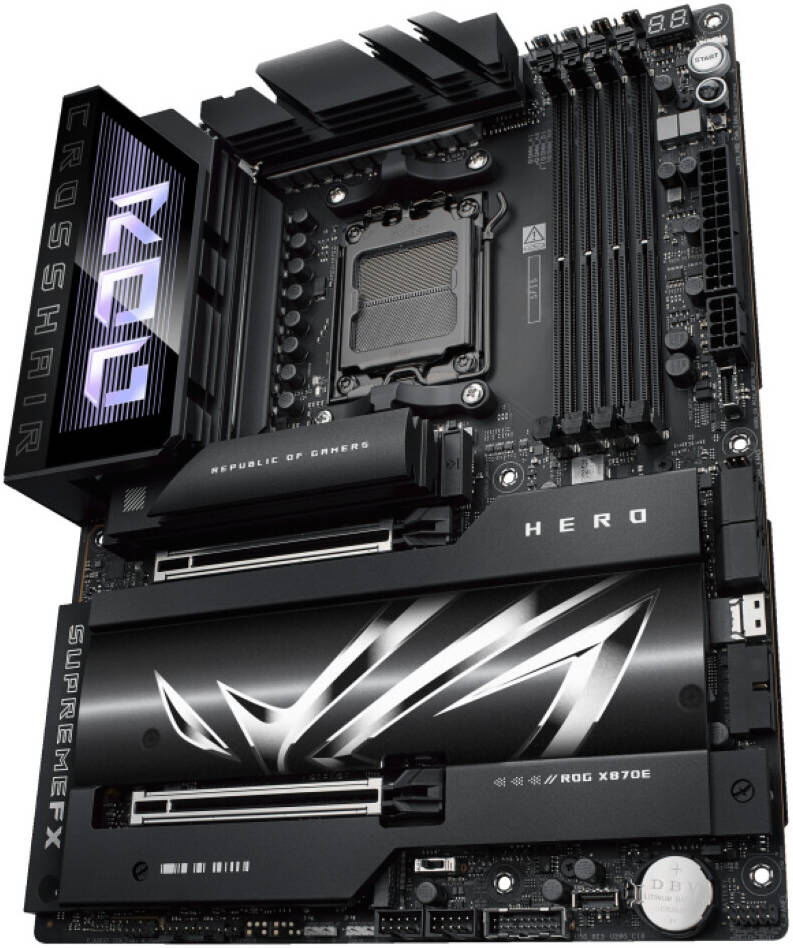

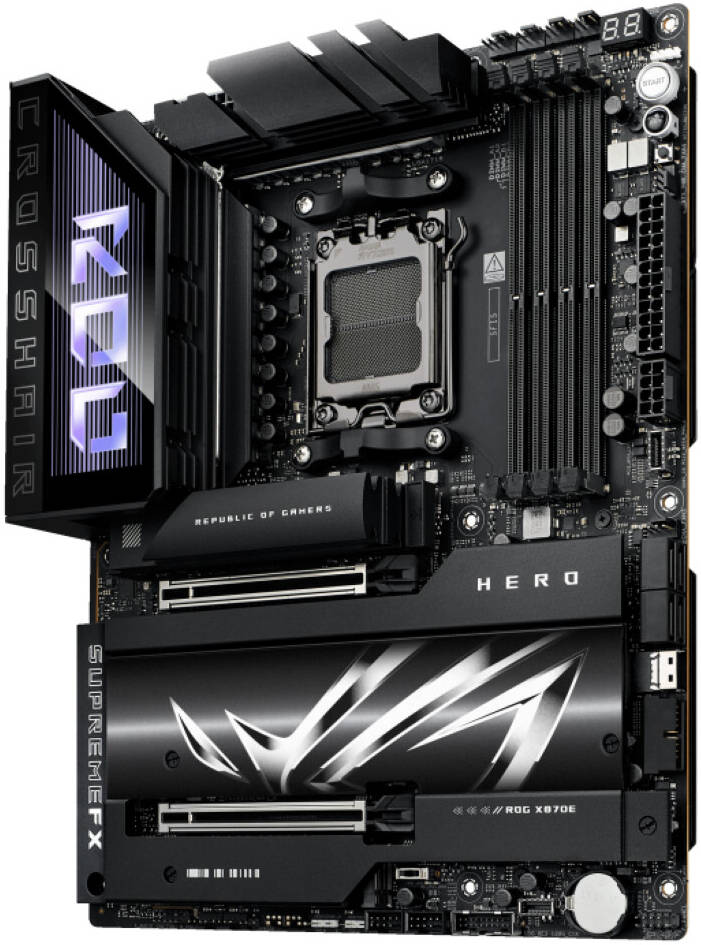

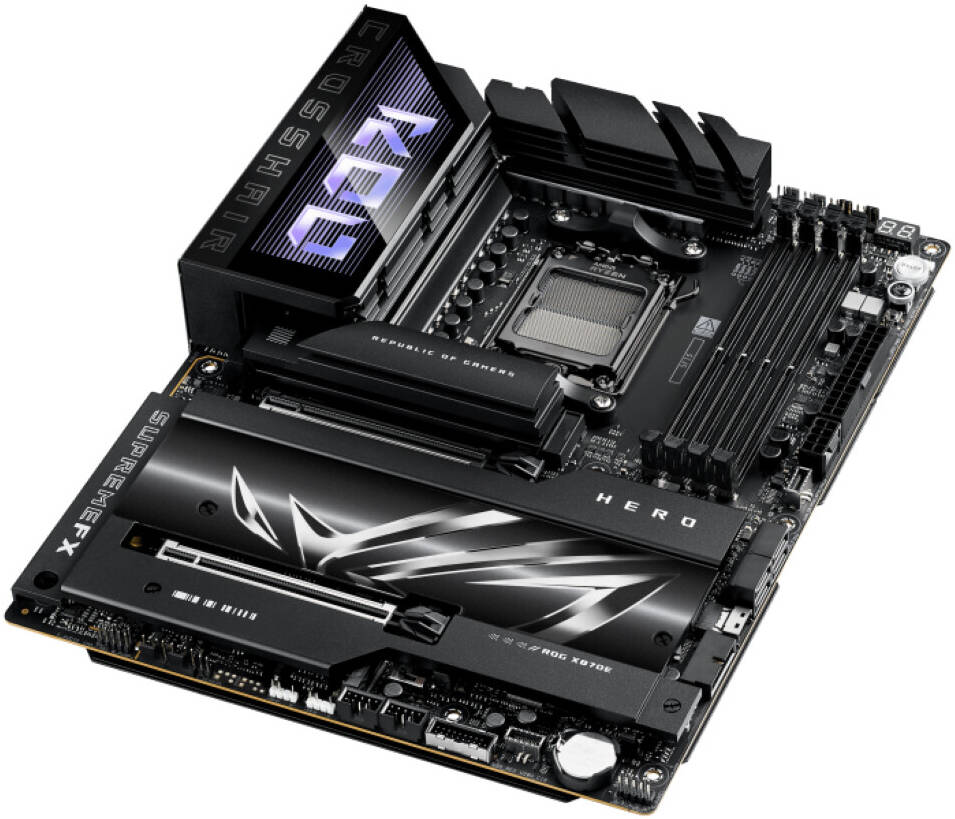

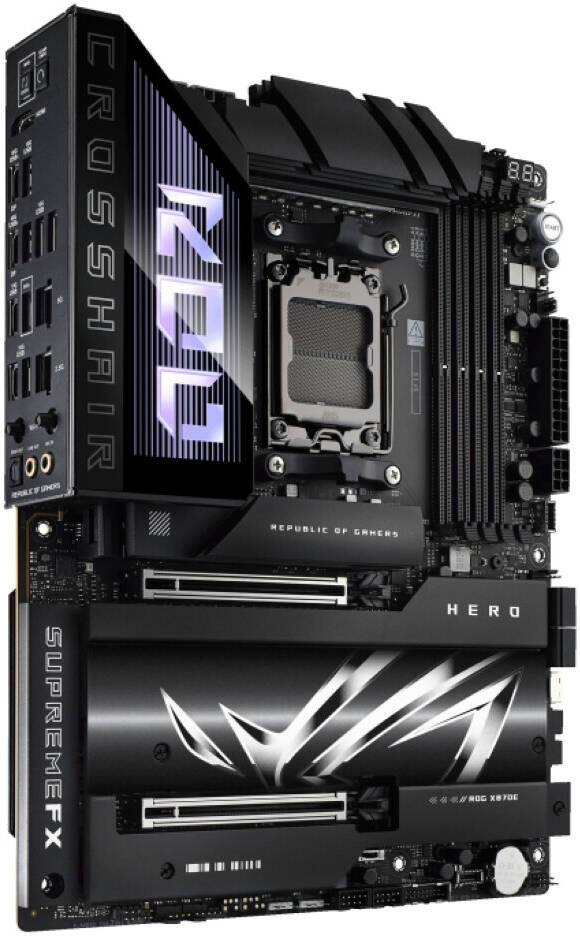

ASUS ROG CROSSHAIR X870E HERO, AMD AM5 Motherboard, DDR5 192GB Max Support EXPO, AI Intelligence, Wi-Fi 7, 2 x USB4 Ports, Overclocking Support | 90MB1IE0-M0EAY0

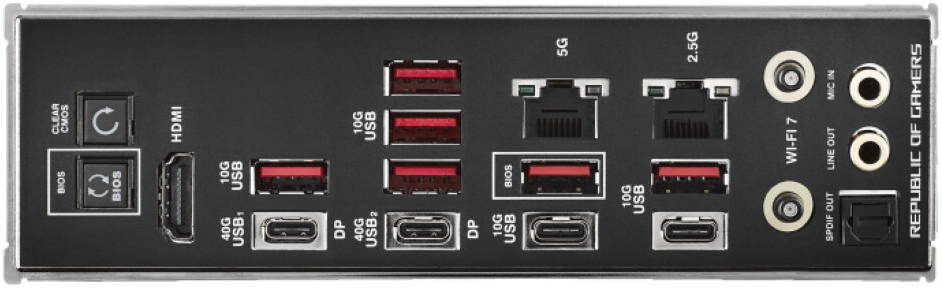

Category Specifications CPU AMD Socket AM5 for AMD Ryzen™ 9000, 8000, & 7000 Series Desktop Processors* *Refer to ASUS support for CPU support list. Chipset AMD X870E Memory 4 x DIMM slots, max. 192GB, DDR5 Supports up to 8200+MT/s (OC) with Ryzen™ 9000, 8600+MT/s (OC) with Ryzen™ 8000, 8000+MT/s (OC) with Ryzen™ 7000 ECC and Non-ECC, Un-buffered Memory* Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) NitroPath DRAM Technology ASUS Enhanced Memory Profile (AEMP) *Refer to CPU/Memory Support list on ASUS support page for details. Graphics 1 x HDMI™ port* 2 x USB4® (40Gbps) ports support USB Type-C® display outputs** *Supports 4K@60Hz as specified in HDMI 2.1. **Supports max. 4K@60Hz as specified in DisplayPort 1.4a Expansion Slots 2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8** or x8/x4/x4 modes***) AMD Ryzen™ 8700, 8600, & 8400 Series: 2 x PCIe 4.0 x16 slots AMD Ryzen™ 8500 & 8300 Series: 2 x PCIe 4.0 x16 slots *Refer to PCIe bifurcation table on the support site. Storage Supports 5 x M.2 slots and 1 x SlimSAS connector and 4 x SATA 6Gb/s ports* AMD Ryzen™ 9000 & 7000: 3 x M.2 slots support PCIe 5.0 x4 mode AMD Ryzen™ 8000: 1 x M.2 slot supports PCIe 4.0 x4 mode, others not supported 4 x SATA 6Gb/s ports *AMD RAIDXpert2 Technology supports both PCIe and SATA RAID configurations. Ethernet 1 x Intel® 2.5Gb Ethernet 1 x Realtek 5Gb Ethernet ASUS LANGuard Wireless & Bluetooth Wi-Fi 7 (802.11be), 2x2 Wi-Fi 7 supports 2.4/5/6GHz frequency band** Bluetooth® v5.4*** USB Rear USB (Total 10 ports) 2 x USB4® (40Gbps) ports 8 x USB 10Gbps ports (6 x Type-A + 2 x USB Type-C®) Front USB (Total 10 ports) 1 x USB 20Gbps Type-C® 1 x USB 20Gbps connector 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Audio ROG SupremeFX 7.1 Surround Sound CODEC ALC4082* Supports 32-Bit/384 kHz playback on front panel ESS® ES9219 QUAD DAC *Requires chassis with HD audio module for 7.1 Surround Sound output. Back Panel I/O Ports 2 x USB4® (40Gbps) ports 8 x USB 10Gbps ports 1 x HDMI™ port 1 x Intel® 2.5Gb Ethernet port 1 x Realtek 5Gb Ethernet port 2 x Gold-plated audio jacks 1 x Optical S/PDIF out port Internal I/O Connectors 1 x 4-pin CPU Fan header 4 x 4-pin Chassis Fan headers 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors 5 x M.2 slots 4 x SATA 6Gb/s ports 2 x USB 20Gbps connectors Special Features Extreme OC Kit, ASUS Q-Design, Aura Sync, ASUS Thermal Solution, ASUS EZ DIY Software Features ROG Exclusive Software, ASUS Exclusive Software, UEFI BIOS features BIOS 256Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Accessories 1 x ASUS WiFi Q-Antenna, 4 x SATA 6Gb/s cables, 1 x USB drive with utilities and drivers, 1 x Quick start guide Operating System Windows® 11 Form Factor ATX Form Factor (12 inch x 9.6 inch / 30.5 cm x 24.4 cm)
