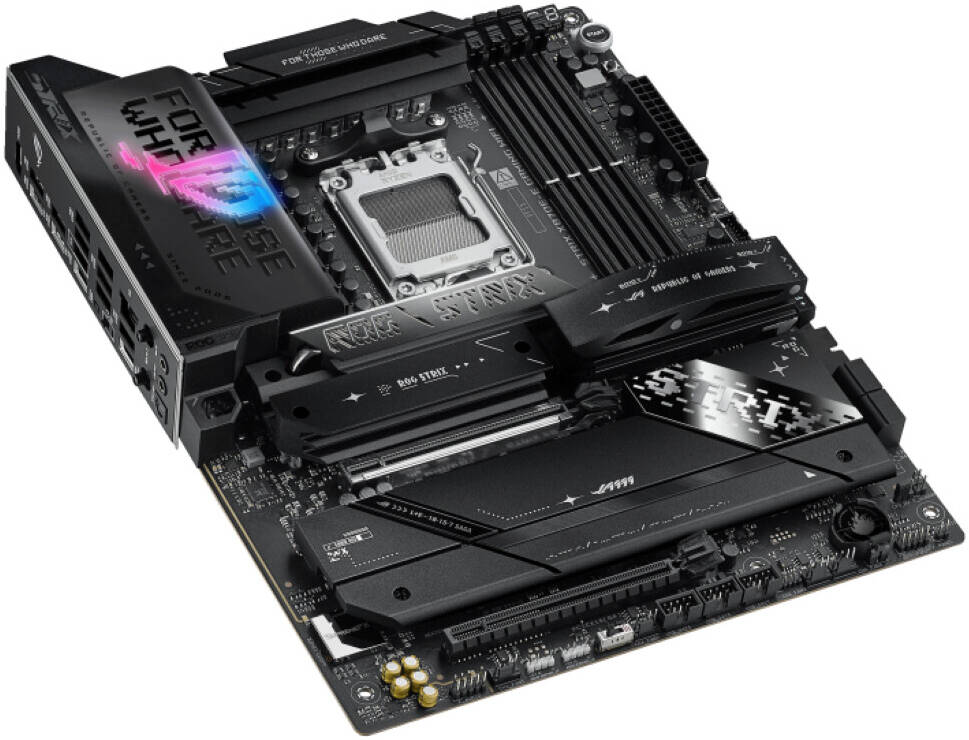

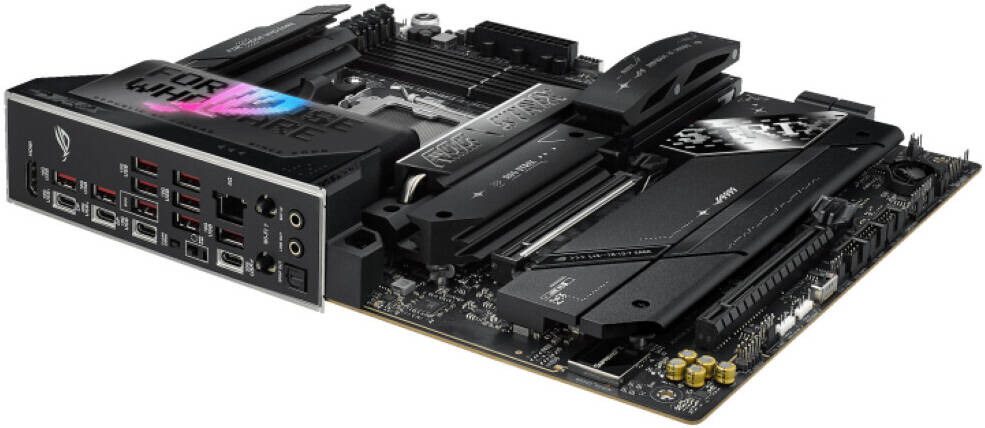

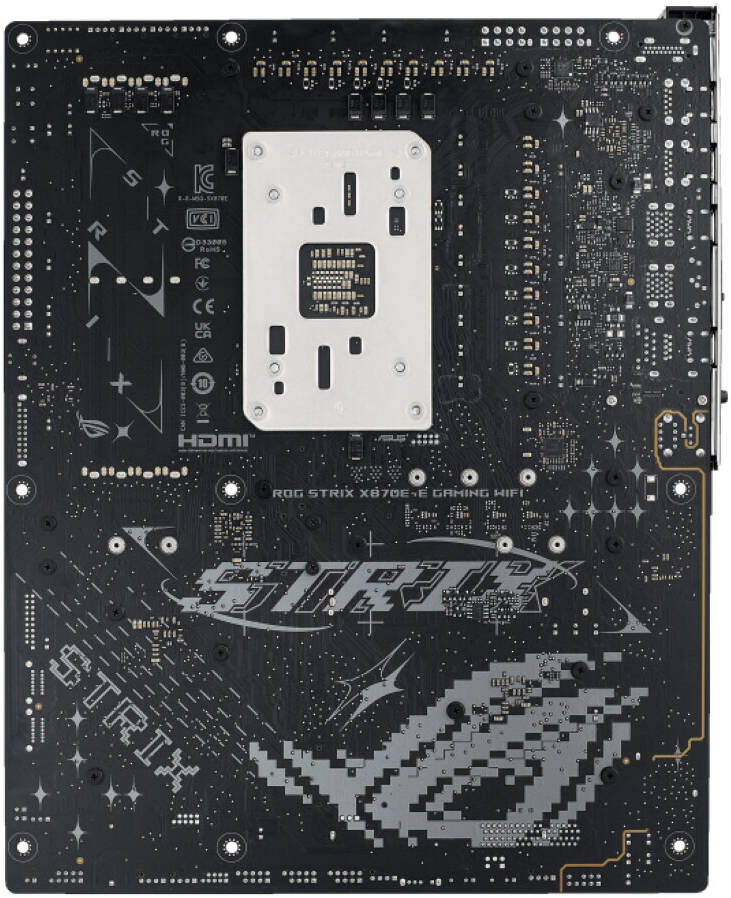

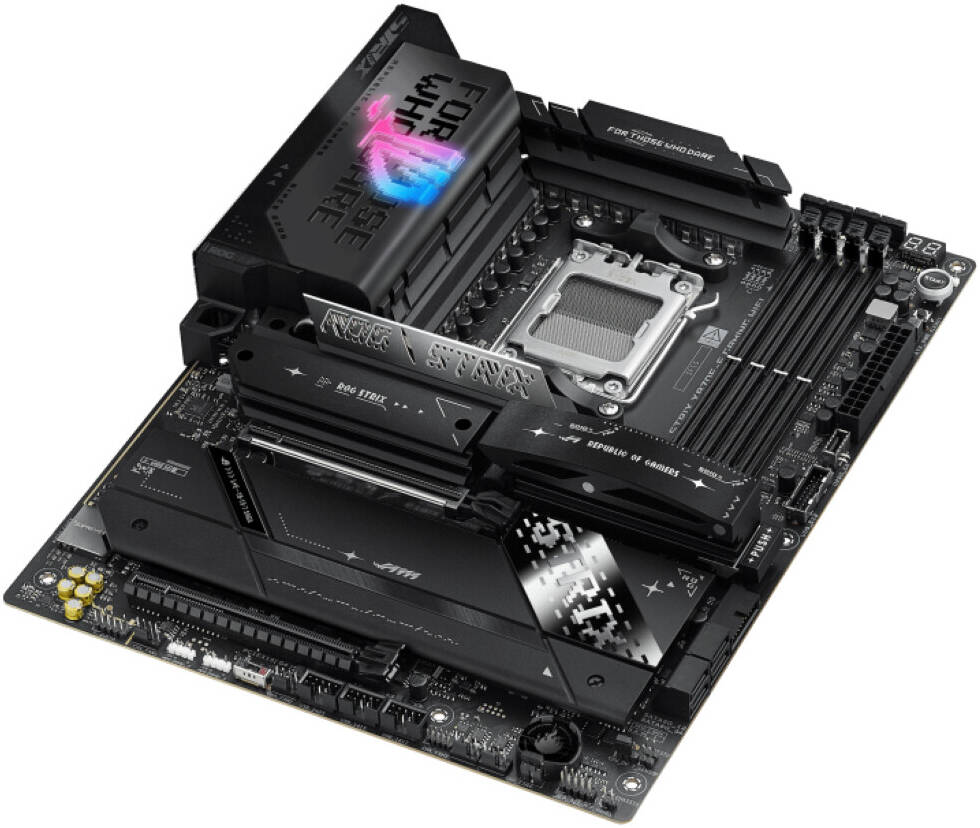

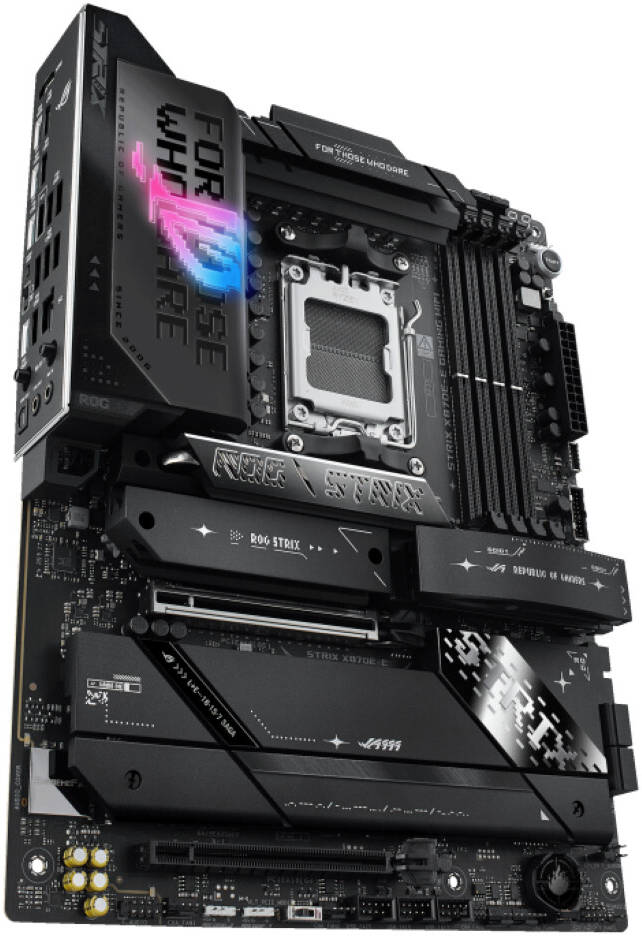

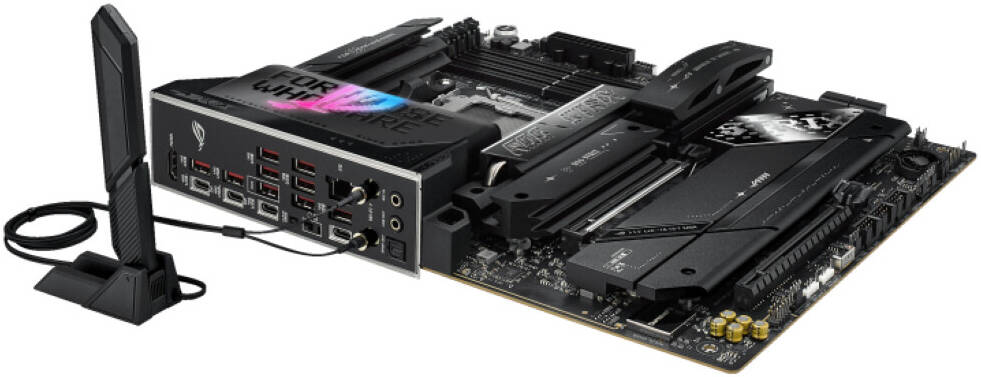

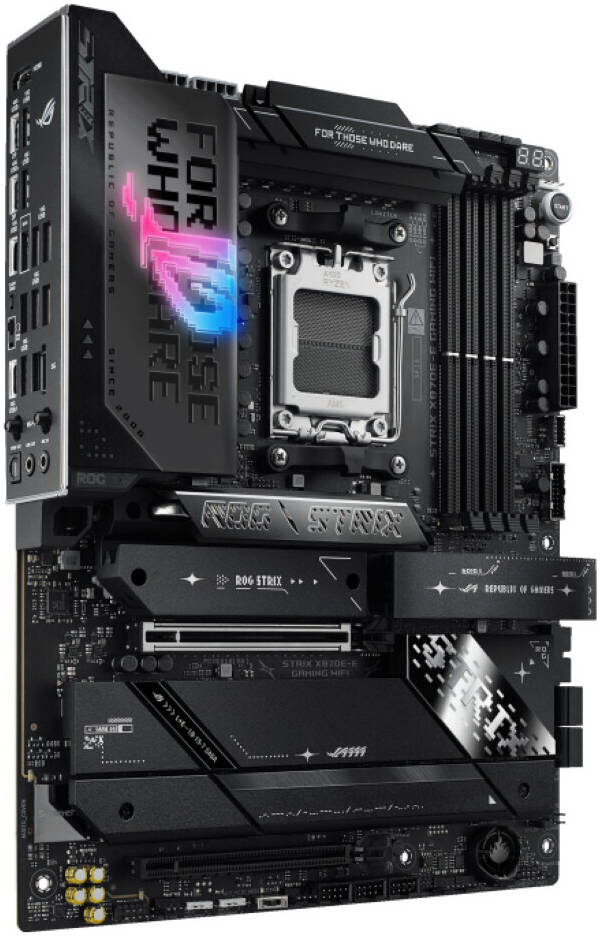

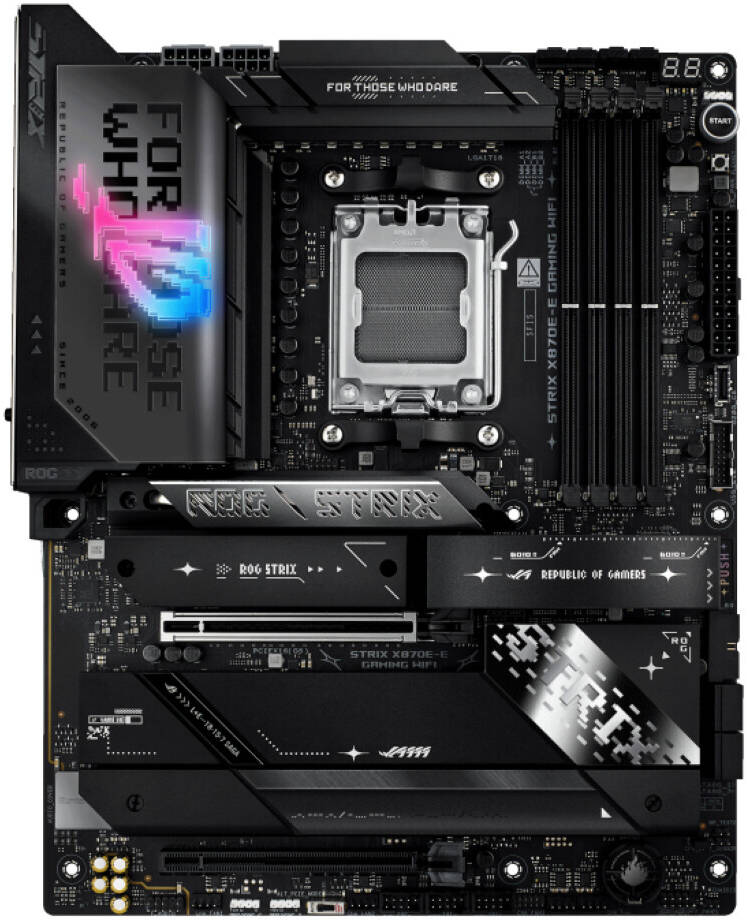

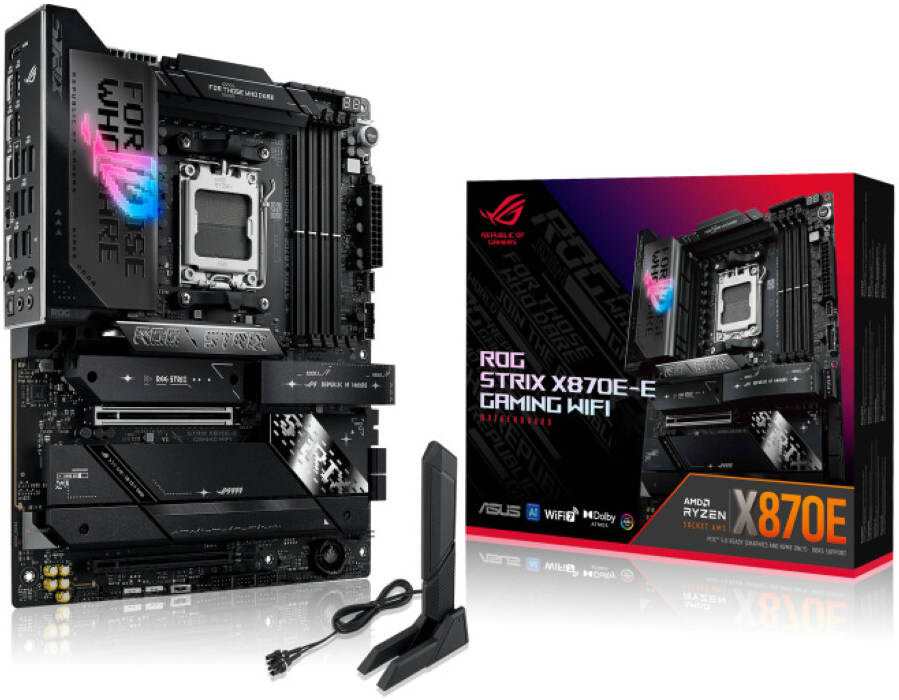

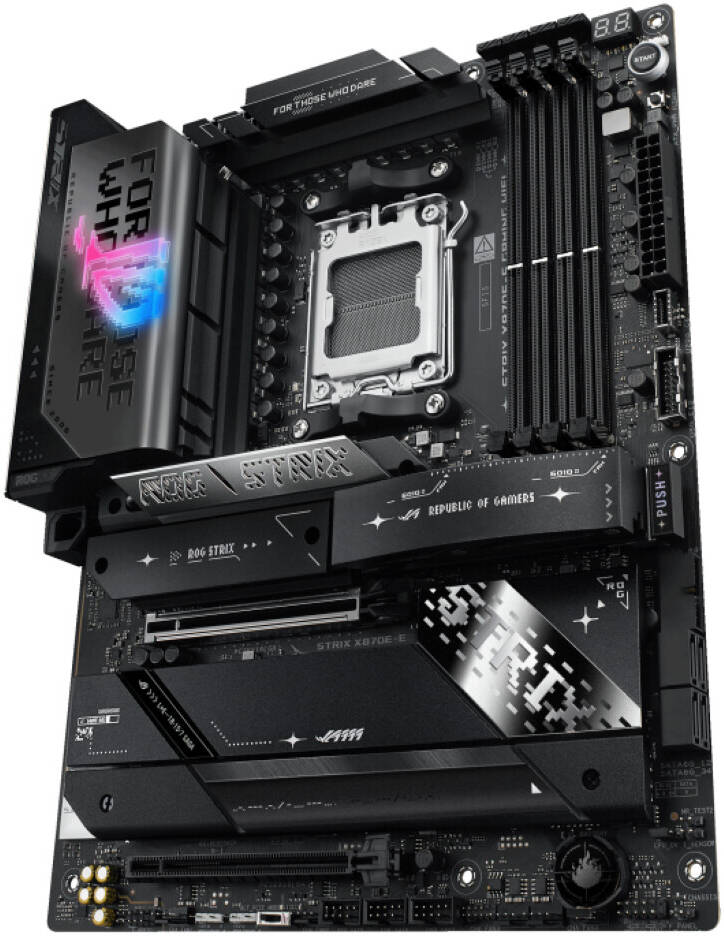

ASUS ROG STRIX X870E-E GAMING WIFI, DDR5 Motherboard For AMD AM5 Processors, Wi-Fi 7, AI Intelligence, Up To 192GB RAM EXPO, AI Overclocking, 2xUSB4 Ports, Gen 5 PCIe | 90MB1IB0-M0EAY0

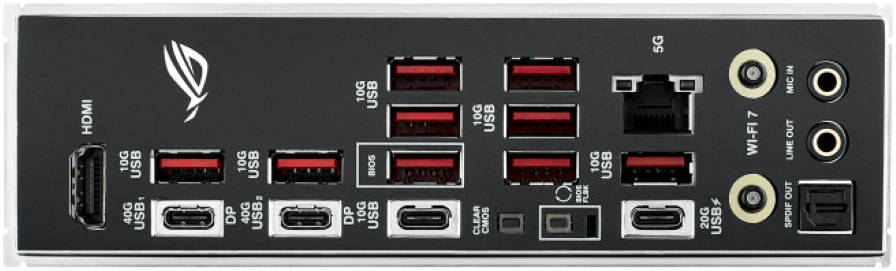

Component Specification CPU Socket AMD Socket AM5 for AMD Ryzen™ 9000, 8000, 7000 Series Desktop Processors Chipset AMD X870E Memory 4 x DIMM slots, max. 192GB DDR5, Dual Channel, ECC & Non-ECC Un-buffered DIMM, NitroPath DRAM Technology, ASUS Enhanced Memory Profile (AEMP) Supported Memory Speeds Ryzen 9000: Up to 8000+ MT/s (OC), Ryzen 8000: Up to 8400+ MT/s (OC), Ryzen 7000: Up to 8000+ MT/s (OC) Graphics 1 x HDMI 2.1 (up to 4K @ 60Hz), 2 x USB4® (40Gbps) with USB-C display outputs, DisplayPort 1.4a Expansion Slots Ryzen 9000 & 7000: 1 x PCIe 5.0 x16, Ryzen 8000: 1 x PCIe 4.0 x16, AMD X870E Chipset: 1 x PCIe 4.0 x16 (x4 mode) Storage 5 x M.2 slots (PCIe 5.0 x4, PCIe 4.0 x4), 4 x SATA 6Gb/s ports, AMD RAIDXpert2 (RAID 0/1/5/10 support with Ryzen 9000) Ethernet 1 x Realtek 5Gb Ethernet with ASUS LANGuard Wireless & Bluetooth Wi-Fi 7 (802.11be), Bluetooth 5.4, 2x2 Wi-Fi 7 (2.4/5/6GHz) USB (Rear) 2 x USB4® (40Gbps, USB-C), 1 x USB 20Gbps (USB-C, PD 30W), 10 x USB 10Gbps (9 x Type-A, 1 x USB-C) USB (Front) 1 x USB 20Gbps (USB-C), 2 x USB 5Gbps headers (supports 4 USB ports), 3 x USB 2.0 headers (supports 6 USB ports) Audio ROG SupremeFX 7.1 Surround Sound (ALC4080), Optical S/PDIF out, Gold-plated jacks, Savitech SV3H712 AMP Cooling 1 x CPU Fan header, 1 x CPU OPT Fan header, 1 x AIO Pump header, 5 x Chassis Fan headers Power Connectors 1 x 24-pin Main Power, 2 x 8-pin +12V CPU Power I/O Ports (Rear) 2 x USB4® (40Gbps, USB-C), 1 x USB 20Gbps (USB-C), 10 x USB 10Gbps (9 x Type-A, 1 x USB-C), HDMI, 5Gb Ethernet, 2 x Audio jacks, Optical S/PDIF, BIOS FlashBack™ & Clear CMOS buttons Form Factor ATX, 12 inch x 9.6 inch (30.5 cm x 24.4 cm) Special Features M.2 Q-Latch, Q-Release, PCIe SafeSlot, ROG CPU-Z, Aura Sync, Fan Xpert 4, Extreme Engine Digi+, BIOS FlashBack™, Q-Code Accessories 2 x SATA 6Gb/s cables, Wi-Fi moving antennas, M.2 Q-Latch package, Cable ties, ROG Strix stickers, M.2 thermal pads Operating System Windows 11 64-bit
