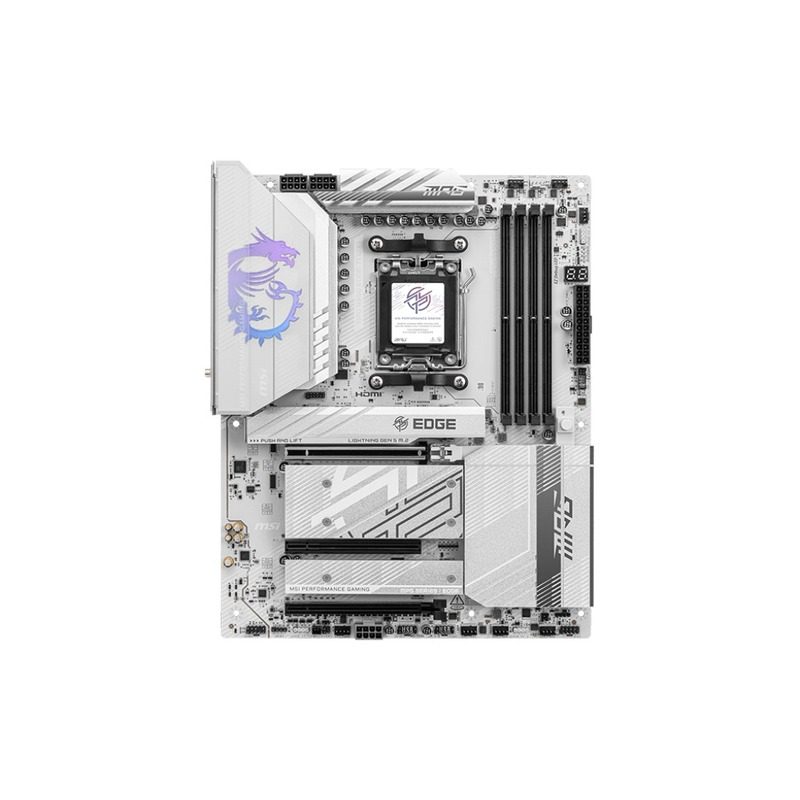

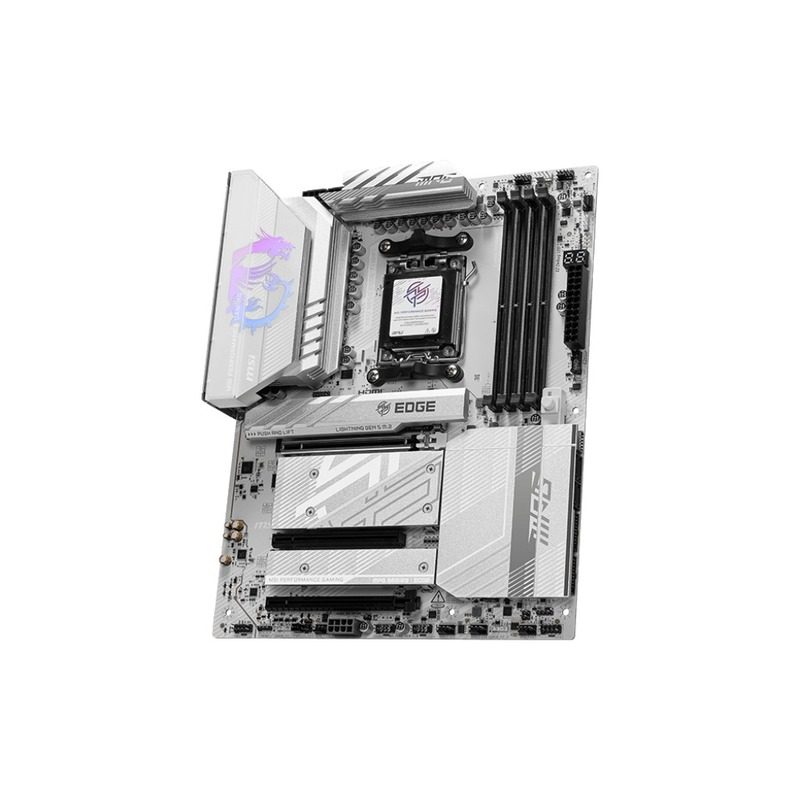

MSI MPG B850 EDGE TI WIFI/AM5/ATX

MSI MPG B850 EDGE TI WIFI Frozr Guard EZ DIY Lightning Gen 5 Audio Boost 5 Chipset: AMD B850 Dimension format: ATX (304.8x243.84mm) Processor support: AMD Ryzen™ 9000/8000/7000 series Processor socket: AM5 Memory: 4x DDR5 UDIMM, maximum memory capacity 256 GB memory support 8400-5600 (OC) MT/s/5600-4800 (JEDEC) MT/s Ryzen™ 9000 series processors max. overclocking frequency: • 1DPC 1R speed up to 8400+ MT/s • 1DPC 2R speed up to 6400+ MT/s • 2DPC 1R speed up to 6400+ MT/s • 2DPC 2R speed up to 4800+ MT/s AMD POR Speed and JEDEC Speed support memory overclocking and AMD EXPO™ support Non-ECC support, unbuffered memory CUDIMM support, Clock Driver bypass mode only dual-channel memory architecture Graphic outputs: (Graphics specifications may vary depending on the installed CPU.) 1x HDMI™ 2.1 with FRL port, maximum resolution 8K 60Hz Sound card: Realtek® ALC4080 codec, 7.1-channel audio, supports playback up to 32bit/384 kHz (on the front panel) Ethernet: Realtek® 8126VB 5G LAN WLAN + Bluetooth: Wi-Fi 7 + Bluetooth® 5.4, MLO, 4KQAM (wireless module pre-installed in M.2 Key-E slot) Expansion slots: 3x PCI-E x16: PCI_E1 Gen PCIe 5.0 x16 PCI_E2 Gen PCIe 3.0 x1 PCI_E3 Gen PCIe 4.0 x4 PCI_E1: - PCIe 5.0 x16 support (for Ryzen™ 9000/7000 processors) - PCIe 4.0 x8 support (for Ryzen™ 8700/8600/8400 processors) - PCIe 4.0 x4 support (for Ryzen™ 8500/8300 processors) Storage space: supports a total of 4 M.2 slots and 4 SATA 6Gb/s ports M.2_1 (CPU) supports up to PCIe 5.0 x4, supporting 22110/2280 devices M.2_2 (CPU) supports up to PCIe 5.0 x4, supporting 2280/2260 devices M.2_3 (chipset) supports up to PCIe 4.0 x2, supporting 2280/2260 devices M.2_4 (chipset) supports up to PCIe 4.0 x4, supporting 2280/2260 devices 4x SATA 6Gb/s ports RAID controller: RAID 0/1/10 support for M.2 NVMe storage devices USB: Rear USB (10 ports total) 3x USB 3.2 Gen 2 10Gb/s (type C) 2x USB 3.2 Gen 2 10Gb/s (type A) red 1x USB 3.2 Gen 1 5Gb/s (type A) 4x USB 2.0 Front USB (9 ports total) 1x USB 20Gb/s (Type C) 4x USB 5Gb/s (type A) 4x USB 2.0 Rear panel ports: 3x USB 3.2 Gen 2 10Gb/s (type C) 2x USB 3.2 Gen 2 10Gb/s (type A) red 1x USB 3.2 Gen 1 5Gb/s (type A) 4x USB 2.0 1x HDMI™ 1x RJ-45 5G LAN 1x Wi-Fi/Bluetooth 2x audio connector 1x S/PDIF out 1x Flash BIOS button 1x Clear CMOS button
