GIGABYTE B850 Aorus Elite WIFI7 ICE AM5 ATX Motherboard, AMD B850 Chipset, 4x DDR5 DIMM Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16, 3x M.2 Slots, WiFi & BT, White | B850-A-ELITE-WF7-ICE

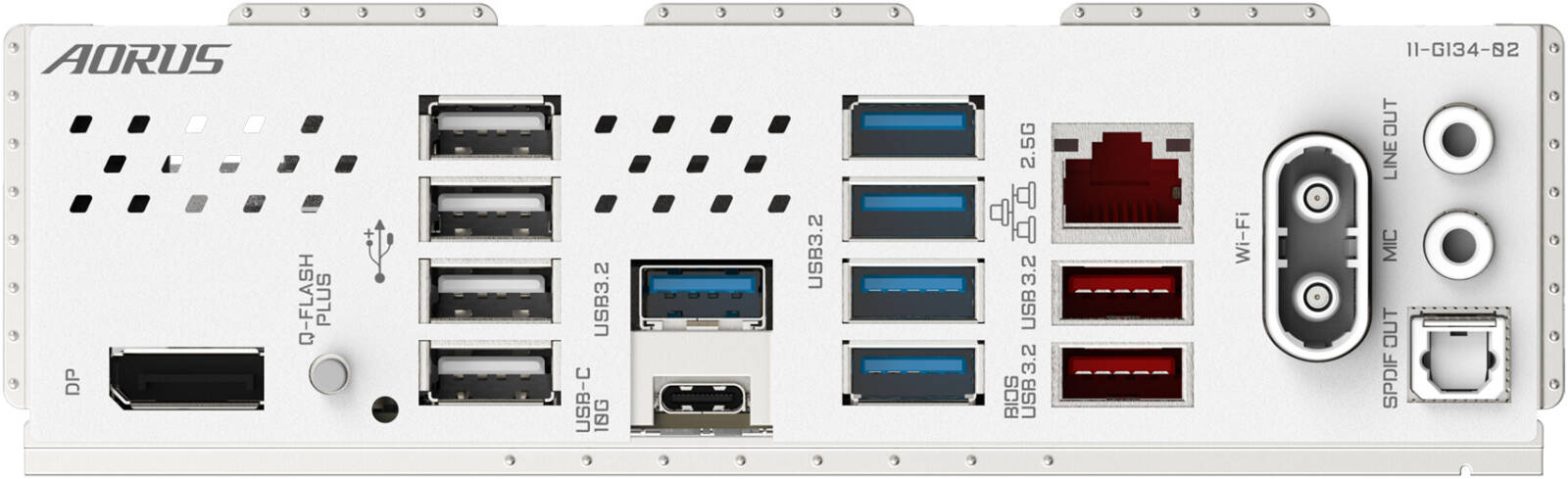

CPU AMD Socket AM5, support for AMD Ryzen™ 9000, 8000, 7000 Series Processors (Refer to GIGABYTE's website for the latest CPU support list) Chipset AMD B850 Memory DDR5 8200(O.C.) to 4800 (O.C.), 4 x DDR5 DIMM sockets, up to 256 GB, Dual Channel, non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16, Support for AMD EXPO™ and XMP memory modules Onboard Graphics AMD Radeon™ Graphics support, 1 x DisplayPort (3840x2160@144 Hz), 1 x Front HDMI port (1920x1080@30 Hz), Support for DisplayPort 1.4 and HDMI 1.4 Audio Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel, S/PDIF Out support LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Wireless Communication Realtek® Wi-Fi 7 RTL8922AE, 802.11a, b, g, n, ac, ax, be (2.4/5/6 GHz), Bluetooth 5.4, Support for 11be 160MHz wireless standard Expansion Slots 1 x PCI Express x16 slot (PCIEX16), 2 x PCI Express x16 slots (PCIEX1_1, PCIEX1_2) Storage Interface 1 x M.2 connector (M2A_CPU) PCIe 5.0 x4/x2 SSDs, 1 x M.2 connector (M2B_CPU) PCIe 4.0 x4/x2 SSDs, 1 x M.2 connector (M2C_SB) PCIe 4.0 x4/x2 SSDs, 4 x SATA 6Gb/s connectors USB 1 x USB Type-C® (USB 3.2 Gen 2), 2 x USB 3.2 Gen 2 Type-A, 4 x USB 2.0/1.1 (CPU+USB 2.0 Hub), 4 x USB 3.2 Gen 1 (Chipset), 4 x USB 3.2 Gen 1 ports on back panel Internal I/O Connectors 24-pin ATX main power, 8-pin ATX 12V, 4-pin ATX 12V, CPU fan headers, 3 system fan headers, 1 USB Type-C® header (USB 3.2 Gen 2x2 support), 2 x USB 2.0/1.1 headers Back Panel Connectors 1 x DisplayPort, 4 x USB 2.0/1.1, 1 x USB Type-C® (USB 3.2 Gen 2), 5 x USB 3.2 Gen 1, 1 x RJ-45 port, 2 x USB 3.2 Gen 2 Type-A (red), 2 x antenna connectors, 2 x audio jacks I/O Controller iTE® I/O Controller Chip H/W Monitoring Voltage, Temperature, Fan speed, Water cooling flow rate detection, Fan fail warning, Fan speed control BIOS 256 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features GIGABYTE Control Center (GCC) support, Q-Flash, Q-Flash Plus, Smart Backup Bundled Software Norton® Internet Security (OEM version), LAN bandwidth management software Operating System Support for Windows 11 64-bit Form Factor ATX Form Factor; 30.5cm x 24.4cm
