SILVERSTONE POWERSUPPLY 5.0 1200W PLATINUM

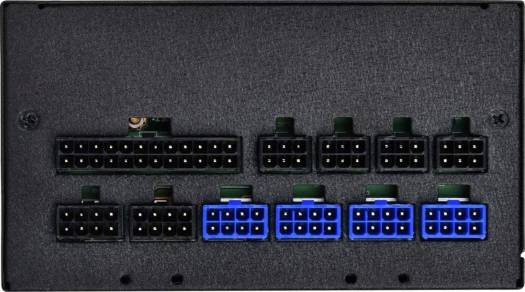

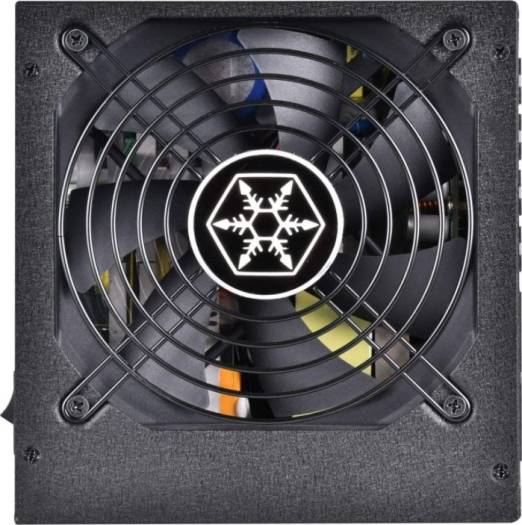

Product No. SST-HA1200R-PM Model (safety certification) SST-AX1200MCPT-A Color Black (lead-free paint) Max. DC Output 1200W Power density 620W per liter Load Range Output +3.3V +5V +12V +5VSB -12V Max.(Amps) 22A 22A 100A 2.5A 0.3A Min.(Amps) 0A 0A 0A 0A 0A Range (%) ±3% ±3% +5/-7% ±5% ±5% Line Reg.(%) ±1% ±1% ±1% ±1% ±1% Ripple(mVp-p) 30mV 30mV 70mV 40mV 40mV Combined +3.3V & +5V 120W Combined +12V 1200W Input Voltage 90 ~ 264 Vrms Input Frequency Range 47Hz ~ 63Hz PFC Active PFC (PF>0.9 at full load) Efficiency ≥87% & <89% overall efficiency MTBF 100,000 hours Operating temperature 0°C ~ 50°C Protection Over Current Protection Over Power Protection Over Voltage Protection Short Circuit Protection Under Voltage Protection Over Temperature Protection No load operation Connectors 1 x 24 / 20-Pin motherboard connector 2 x 8 / 4-Pin EPS / ATX 12V connector 6 x 8 / 6-Pin PCIe connectors 1 x 12+4-Pin 12VHPWR connector 12 x SATA connectors 3 x 4-Pin Peripheral connector 1 x 4-Pin Floppy connector Cooling System Silent 135mm FDB fan Noise Level 0 dBA minimum Certification Cybenetics Platinum Form factor ATX (PS2) Dimension 150mm (W) × 86mm (H) × 150mm (D) 5.91" (W) x 3.39" (H) x 5.91" (D) Weight 2.9 kg Other GPU Support list
