Specifications
Form Factor ATX12V
PFC Type Active PFC
ATX Standard ATX 3.0
Dimensions 150 x 150 x 86 mm
Efficiency 80Plus Gold
MTBF >120,000 hrs @ 25°C
Protection Features OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials ROHS
AC Input Range 100-240Vac
DC Output Voltage +3.3V, +5V, +12V, -12V, +5Vsb
Maximum Load 20A (+3.3V & +5V), 70.5A (+12V), 0.3A (-12V), 2.5A (+5Vsb)
Combined Load 110W (+3.3V & +5V), 846W (+12V), 3.6W (-12V), 12.5W (+5Vsb)
Total Output 850W

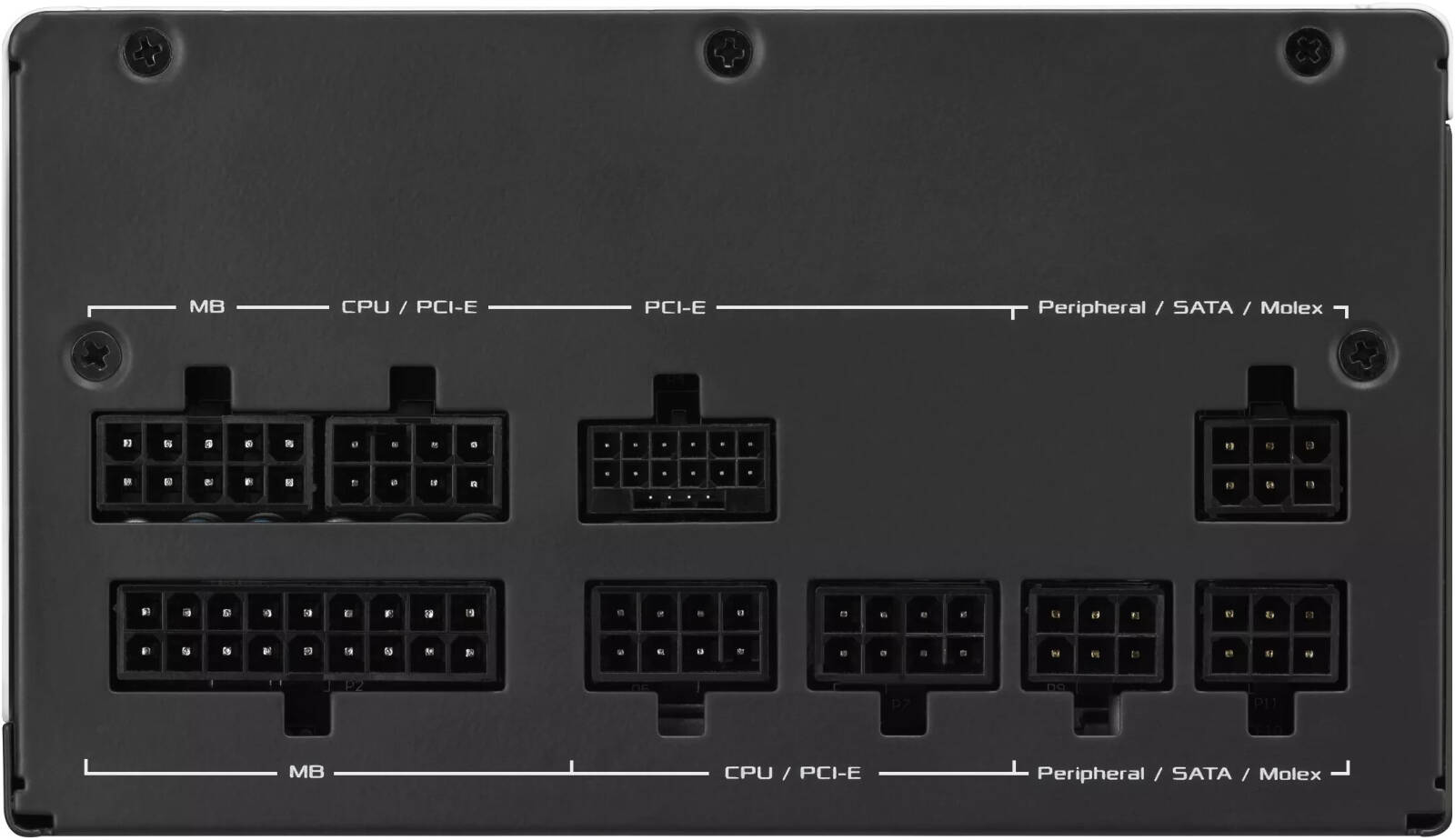

Cable Connectors MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1
PCI-E 8-pin x 3
SATA x 5
PERIPHERAL x 3
Weight 1.502 kg (single PSU)
0dB Technology No
0dB Fan Button No, this product is without 0dB technology.
