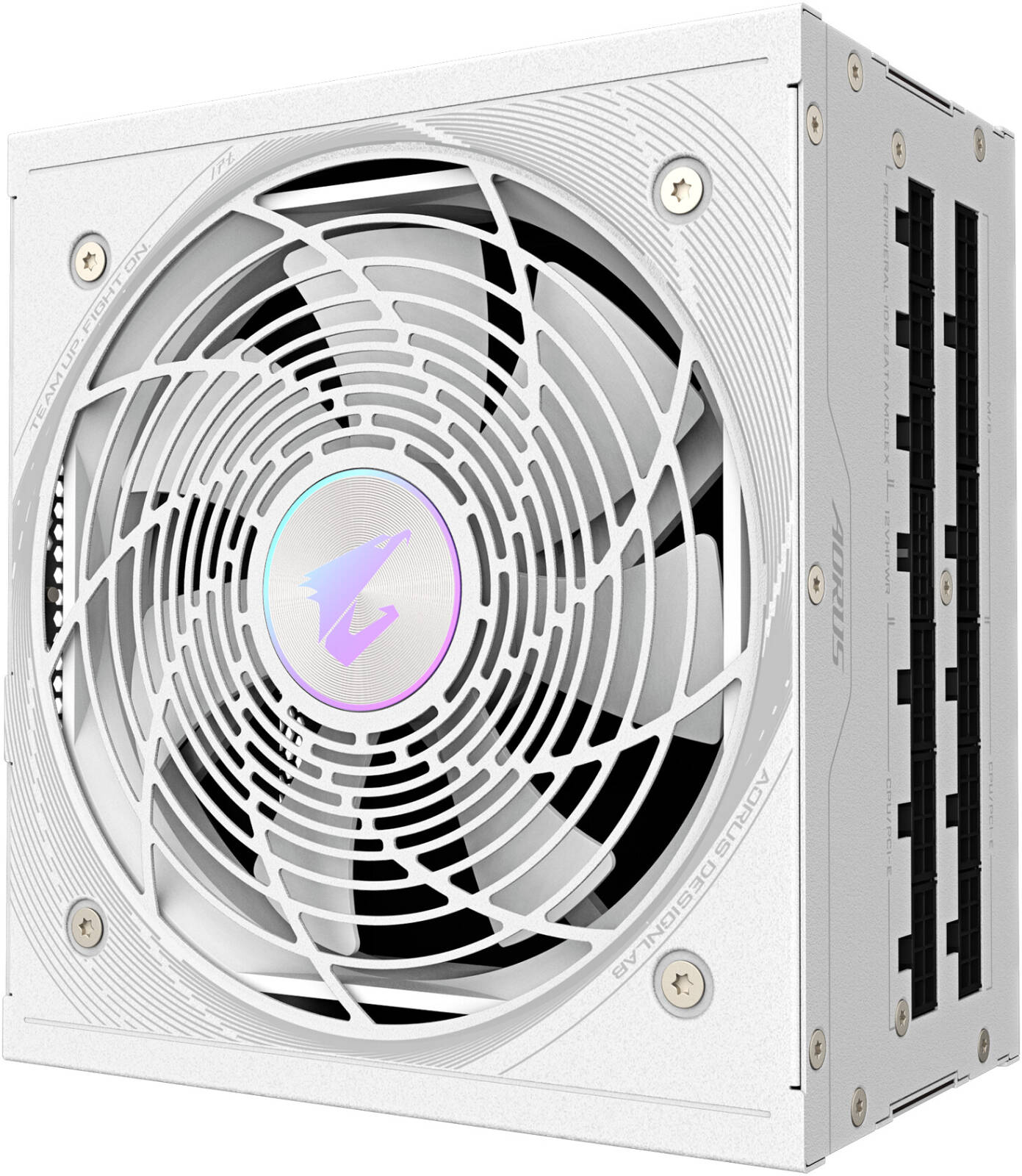

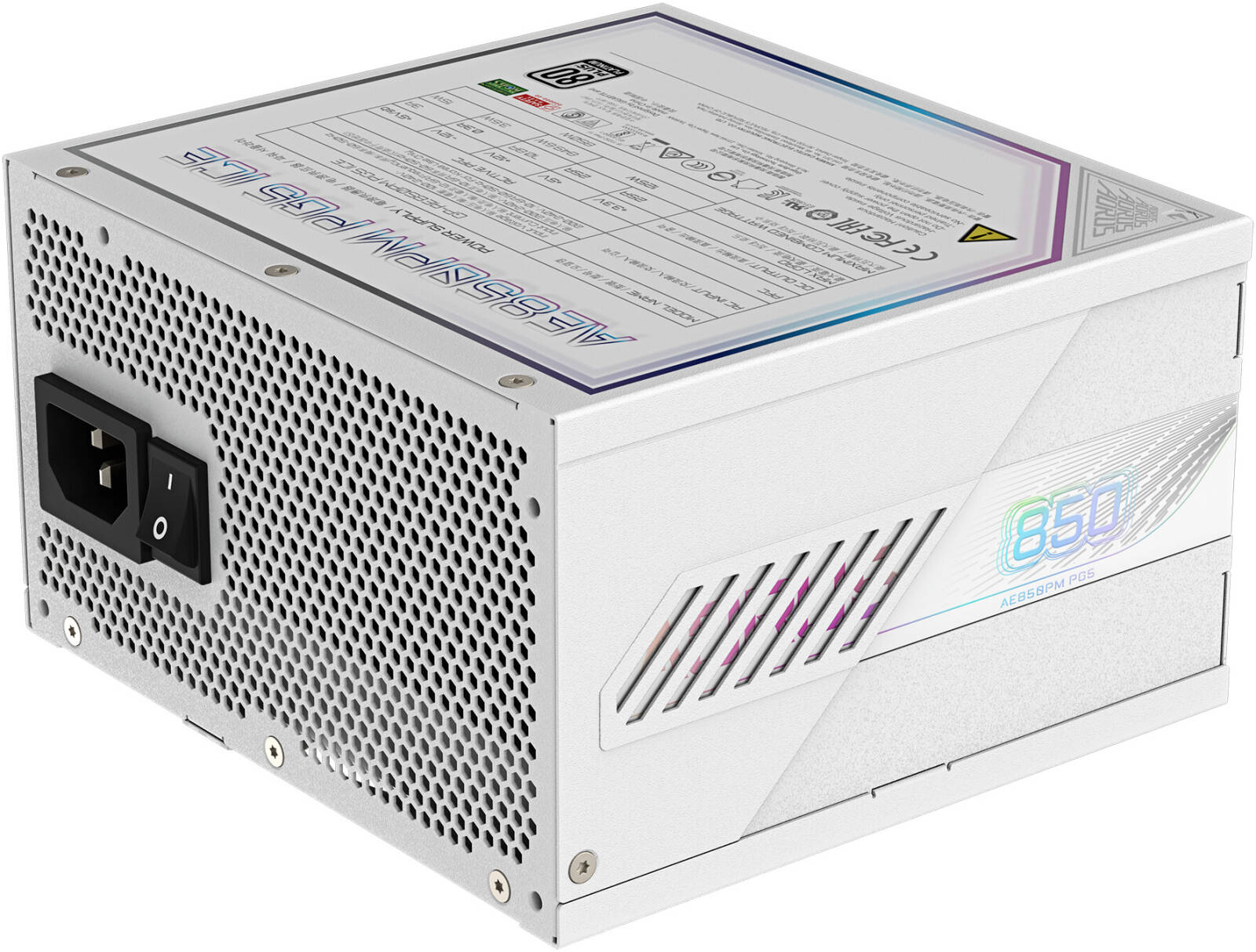

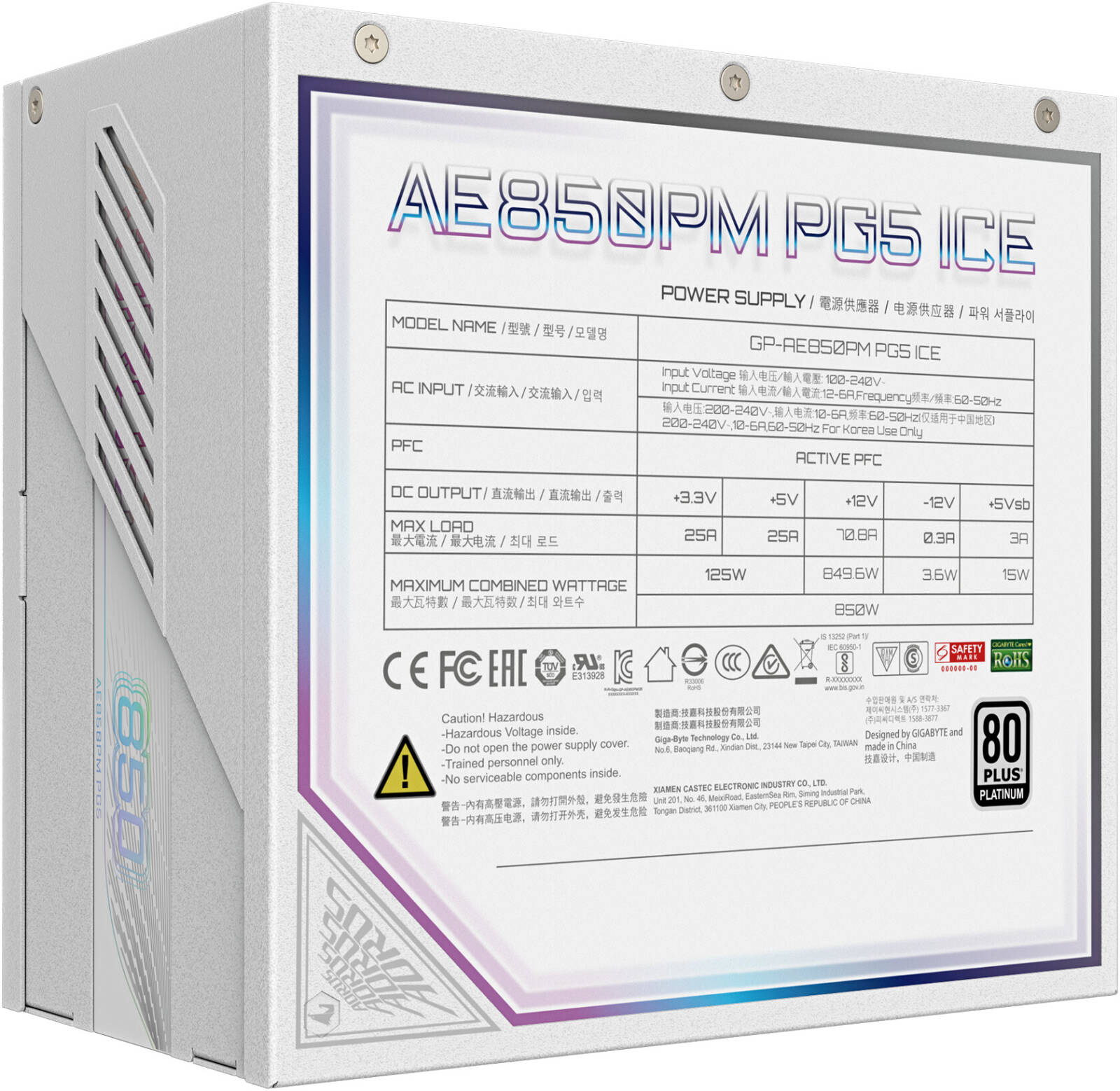

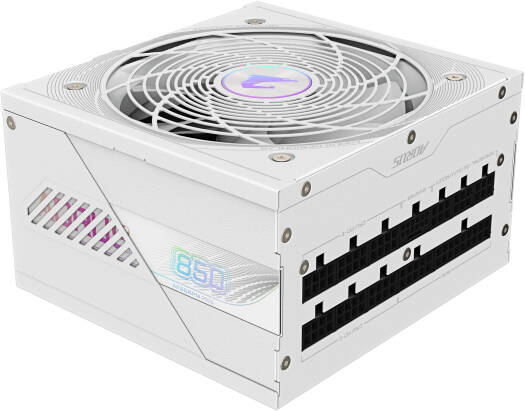

GIGABYTE AORUS ELITE P850W 80+ Platinum Modular PCIe 5.0 Power Supply, Intel Form Factor ATX 12V v3.0, 850W Capacity, 120mm FDB Fan, 60-50 Hz Input Frequency, Ice | GP-AE850PM-PG5-ICE

Specifications Model GP-AE850PM PG5 Type Intel Form Factor ATX 12V v3.0 (compatible with ATX 3.1) PFC Active PFC (>0.9 typical) Input Voltage 100-240 Vac (full range) Input Current 12-6A Input Frequency 60-50 Hz Output Capacity 850W Dimensions 150 x 140 x 86 mm Fan Type 120mm Fluid Dynamic Bearing (FDB) Fan 80 PLUS Certification Platinum Efficiency 92% at typical load MTBF >100,000 hours Protection OVP (Over Voltage Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OTP (Over Temperature Protection) Power Good Signal 100-150 ms Hold Up Time >16 ms Cable Type Flat, All Black Connectors - ATX/MB 20+4 Pin x1: 650mm - CPU/EPS 4+4 Pin x2: 700mm - PCI-e 16 Pin x1: 700mm - PCI-e 6+2 Pin x6: 650mm+150mm x2, 750mm x2 - SATA x8: 600mm+150mm+150mm+150mm x2 - 4 Pin Peripheral x4: 500mm+150mm+150mm+150mm x1
