GPUNVIDIA GeForce RTX 5090 GPU
CUDA cores21760
Video Memory32GB GDDR7
Memory Bus512-bit
Engine Clock2422 MHz
Memory Clock28Gbps
PCI ExpressPCI Express 5.0 x16

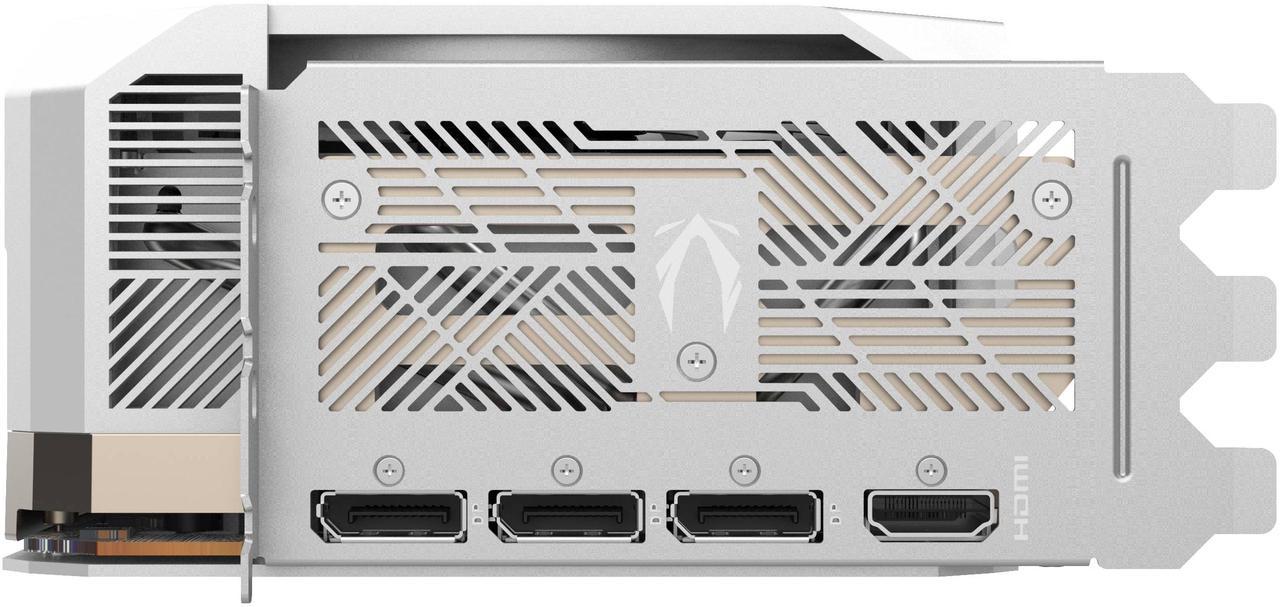

Display Outputs3 x DisplayPort 2.1b with UHBR20
(up to 4K 480Hz or 8K 165Hz with DSC)
1 x HDMI® Connector
(Supports 4K 480Hz HDR or 8K 120Hz HDR with DSC, and Gaming VRR as specified in the HDMI 2.1b Specification)
HDCP Support2.3
Multi Display CapabilityQuad Display
Recommended Power Supply1000W
Power Consumption575W *High power consumption, please carefully read your PSU manual before installation.
Power Input1 x 12v-2x6 power input
DirectXMicrosoft DirectX® 12 Ultimate
OpenGL4.6

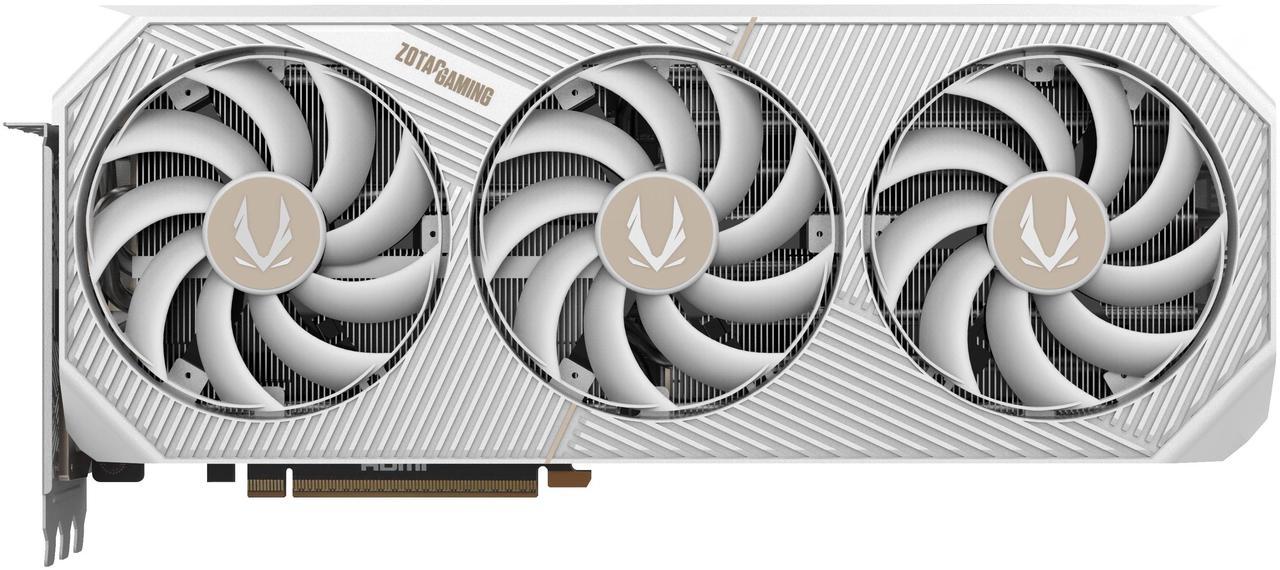

CoolingIceStorm 3.0
Slot Size3.5
SLINo
Supported OSWindows 11 / Windows 10 64-bit (v1809 November 2018 or later)
Card Length329.7mm x 137.8mm x 67.8mm / 13" x 5.4" x 2.7"

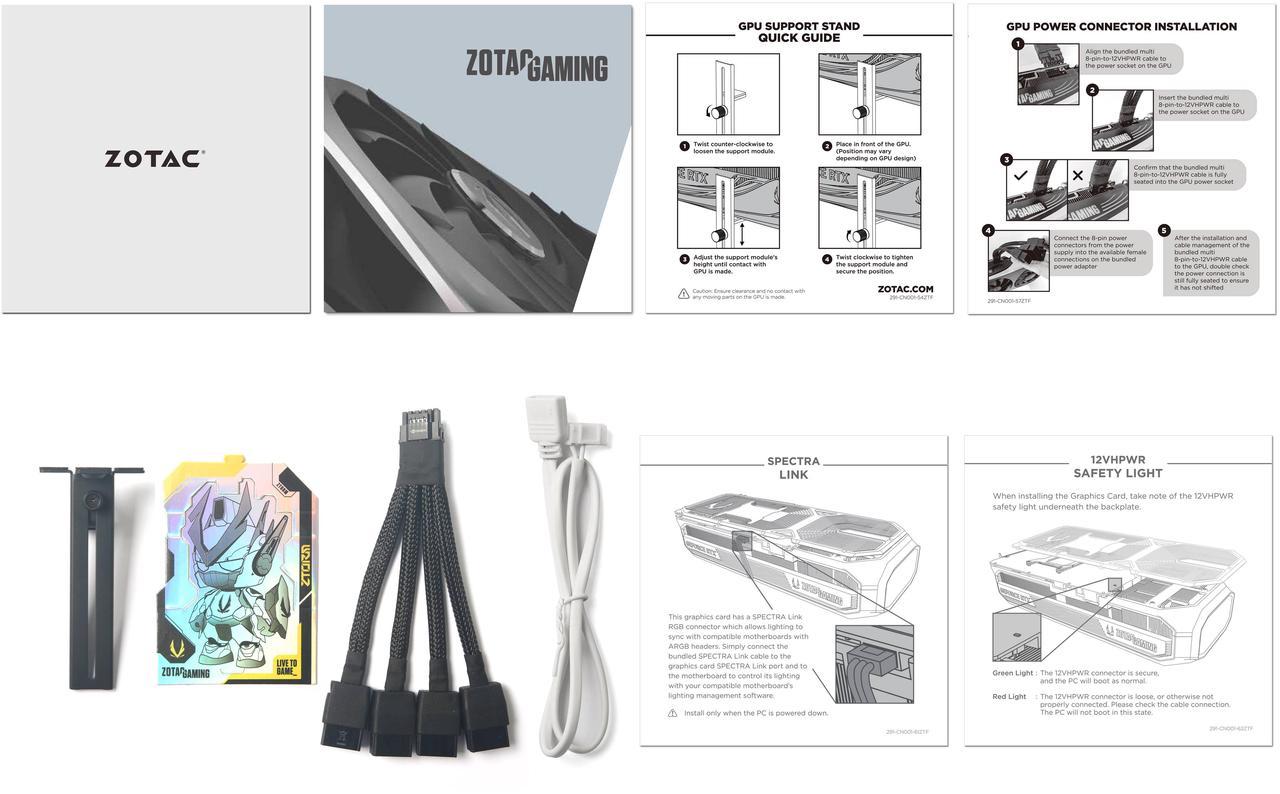

AccessoriesUser Manual
4 x 8-pin-to-16-pin cable
SPECTRA LINK cable
GPU Support Stand
