Specifications
Graphics Processing GeForce RTXâ„¢ 5060 Ti
Core Clock 2617 MHz (Reference: 2572 MHz)
CUDA® Cores TBD
Memory Clock 28 Gbps
Memory Size 16 GB
Memory Type GDDR7
Memory Bus 128-bit
Card Bus PCI-E 5.0
Digital Max Resolution 7680x4320
Multi-view 4
Card Size (mm) L=215 W=122 H=40
PCB Form ATX
DirectX DirectX 12 API
OpenGL 4.6
Recommended PSU 650W
Power Connectors 8 Pin ×1

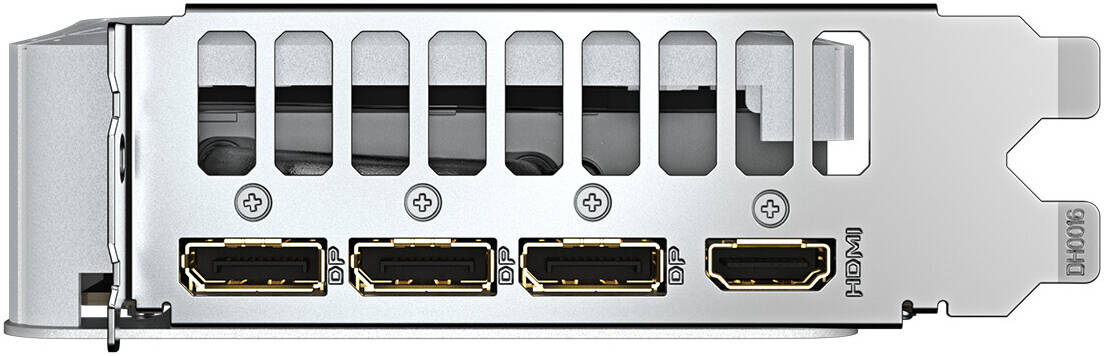

Output Ports DisplayPort 2.1b ×3, HDMI 2.1b ×1
Accessories Quick guide
