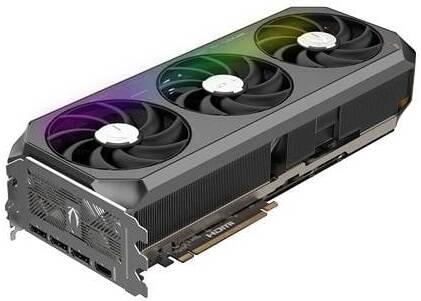

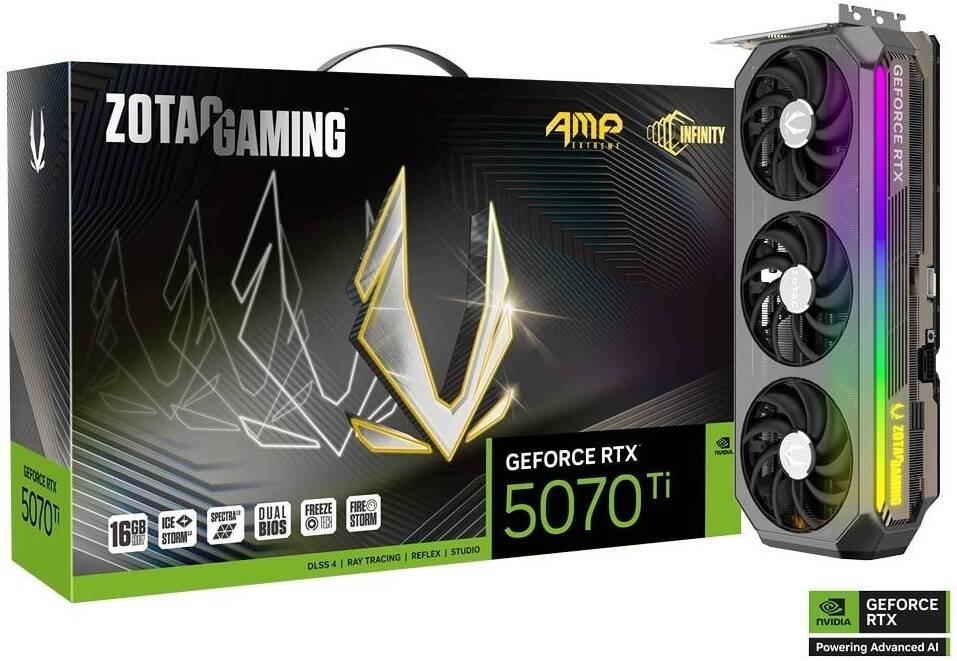

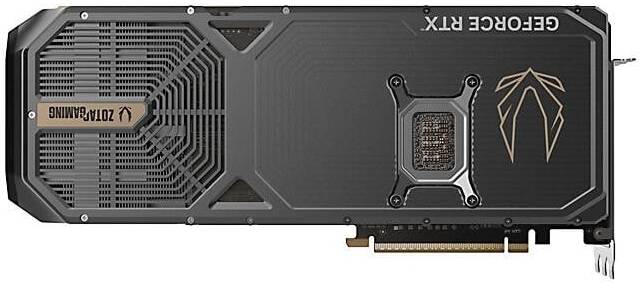

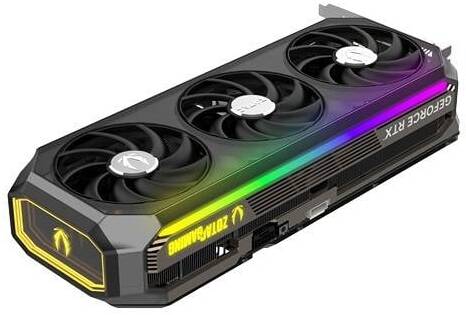

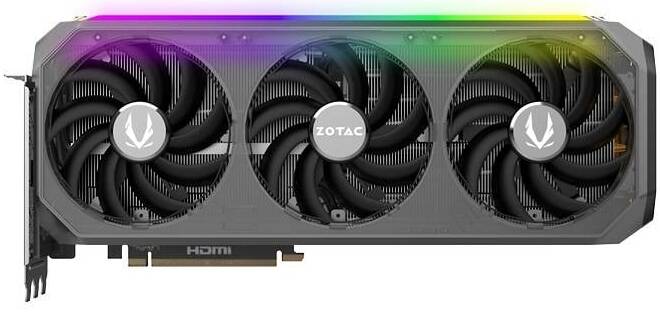

GPU NVIDIA GeForce RTX 5070 Ti
CUDA Cores 8960
Video Memory 16GB GDDR7
Memory Bus 256-bit
Engine Clock 2512 MHz
Memory Clock 28 Gbps
PCI Express PCI Express 5.0 x16

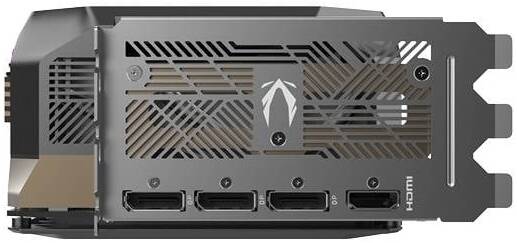

Display Outputs 3 x DisplayPort 2.1b with UHBR20 (up to 4K 480Hz or 8K 165Hz with DSC), 1 x HDMI® (Supports 4K 120Hz HDR, 8K 60Hz HDR, and Variable Refresh Rate as per HDMI 2.1b)
HDCP Support 2.3
Multi Display Capability Quad Display
Recommended Power Supply 750W
Power Consumption 300W (High power consumption, check PSU manual before installation)
Power Input 1 x 12v-2x6 power input
DirectX Microsoft DirectX® 12 Ultimate
OpenGL 4.6
Cooling IceStorm 3.0
Slot Size 3.5
SLI No
Supported OS Windows 11 / Windows 10 64-bit (v1809 November 2018 or later)
Card Dimensions 332.1mm x 137.5mm x 69.6mm / 13.1" x 5.4" x 2.7"
Accessories User Manual, 3 x 8-pin-to-16-pin cable, SPECTRA LINK cable, GPU Support Stand
