GPU NVIDIA GeForce RTX 5070
CUDA Cores 6144
Video Memory 12GB GDDR7
Memory Bus 192-bit
Engine Clock 2542 MHz
Memory Clock 28 Gbps
PCI Express PCI Express 5.0 x16

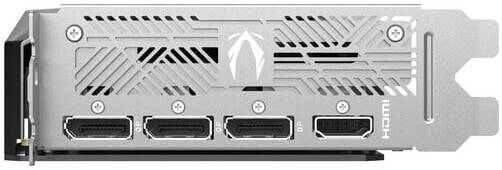

Display Outputs 3 x DisplayPort 2.1b with UHBR20 (up to 4K 480Hz or 8K 165Hz with DSC)
1 x HDMI® Connector (Supports 4K 120Hz HDR, 8K 60Hz HDR, and Variable Refresh Rate as per HDMI 2.1b)
HDCP Support 2.3
Multi Display Capability Quad Display
Recommended PSU 650W
Power Consumption 250W
Power Input 1 x 12v-2x6 power input
DirectX Microsoft DirectX® 12 Ultimate
OpenGL 4.6
Cooling IceStorm 2.0
Slot Size 2
SLI No
Supported OS Windows 11 / Windows 10 64-bit (v1809 November 2018 or later)
Card Dimensions 304.4mm x 115.8mm x 41.6mm (12" x 4.6" x 1.6")
Accessories User Manual
2 x 8-pin-to-16-pin cable
GPU Support Stand
