Specifications
GPU NVIDIA GeForce RTX 5060 Ti
CUDA Cores 4608
Video Memory 8GB GDDR7
Memory Bus 128-bit
Engine Clock 2572 MHz
Memory Clock 28 Gbps
PCI Express PCI Express 5.0 x8

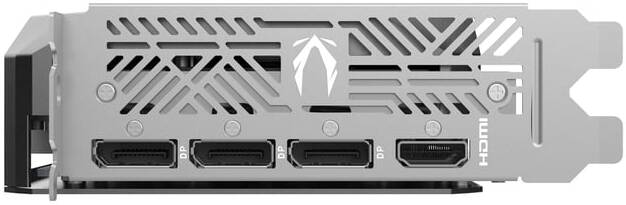

Display Outputs 3 x DisplayPort 2.1b, 1 x HDMI 2.1b
Display Capabilities 4K 480Hz / 8K 165Hz (DP), 4K 480Hz HDR / 8K 120Hz HDR (HDMI)
HDCP Support 2.3
Multi Display Capability Quad Display
Recommended Power Supply 600W
Power Consumption 180W
Power Input 1 x 8-pin
DirectX Microsoft DirectX 12 Ultimate
OpenGL 4.6
Cooling IceStorm 2.0
Slot Size 2
SLI No
Supported OS Windows 11 / Windows 10 64-bit (v1809 or later)
Card Dimensions 220.5 × 120.25 × 41.6 mm / 8.7" × 4.7" × 1.6"
Accessories User Manual
