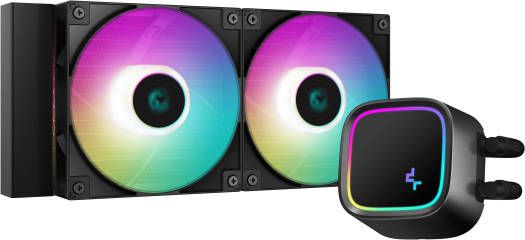

POWERFUL HEAT DISSIPATIONThanks to an efficient micro-channel water block, thickened copper cold plate, and new high-performance ARGB fans, the LE520 achieves excellent heat dissipation of 220W TDP.
Net Weight 1238 gRadiator Dimensions 282×120×27 mm(L×W×H)Radiator Material AluminumTube length 410 mm(L×W×H)Pump Dimensions91×80×52 mm(L×W×H)Pump Speed 2400 RPM±10%Pump Noise 17.8 dB(A)Pump Connector 3-pinPump Rated Voltage 12 VDCPump Rated Current 0.2 APump Power Consumption 2.4 WFan Dimensions 120×120×25 mm(L×W×H)Fan Speed 500~2250RPM±10%Fan Airflow 85.85 CFM
Fan Air Pressure 3.27 mmAqFan Noise ≤32.9 dB(A)Fan Connector 4-pin PWMBearing Type Hydro BearingFan Rated Voltage 12 VDCFan Rated Current 0.25 AFan Power Consumption 3.0 WLED Type Addressable RGB LEDLED Connector 3-pin(+5V-D-G)LED Rated Voltage 5 VDCLED Power Consumption 2.25 W(PUMP)/ 2.1 W(FAN×2)EAN 6933412728047P/N R-LE520-BKAMMN-G-1
