Specifications
Part Number (P/N) CL-W433-PL12SW-A
Pump
Motor Speed PWM 1500~3300 RPM
Rated Voltage 12V
Rated Current 0.43A
Power Input 5.16W

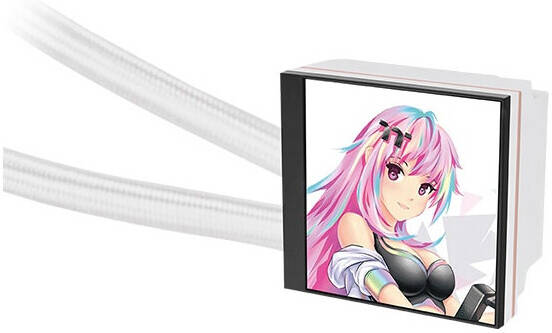

CPU Display
Rated Voltage 5V
Rated Current 0.26A
Power Input 1.3W
Display Type 3.95†TFT-LCD
Display Resolution 480 × 480 (RGB) px
Display Support
Interface Micro USB to USB (9PIN)
System Compatibility Windows 10 / 11

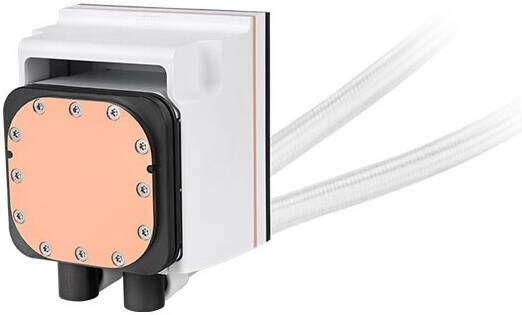

Water Block
Material Copper

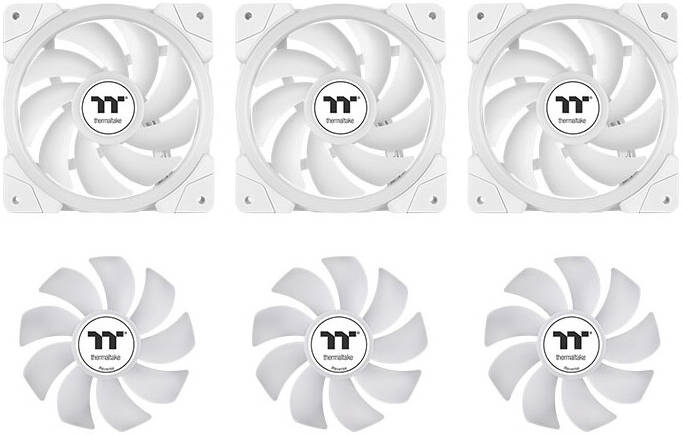

Fan
Dimension 120 x 120 x 25 mm
Fan Speed PWM 500~2000 RPM
Rated Voltage 12V / 5V
Rated Current 0.27A & 0.72A (one fan)
Power Input 3.24W & 3.6W (one fan)
Air Flow (Standard Blade) 57.11 CFM (one fan)
Air Flow (Reverse Blade) 56.26 CFM (one fan)
Static Pressure (Standard) 2.39 mm-Hâ‚‚O
Static Pressure (Reverse) 2.02 mm-Hâ‚‚O
Noise Level (Standard) 30.6 dB-A
Noise Level (Reverse) 32.5 dB-A
Tube
Length 460 mm
Material Rubber

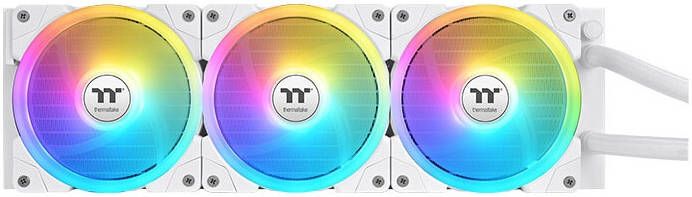

Radiator
Dimension 396 x 120 x 27 mm
Material Aluminum
Compatibility
Intel Sockets LGA 2066 / 2011-3 / 2011 / 1851 / 1700 / 1200 / 1156 / 1155 / 1151 / 1150
AMD Sockets AM5 / AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2 / FM1
TDP 355W
