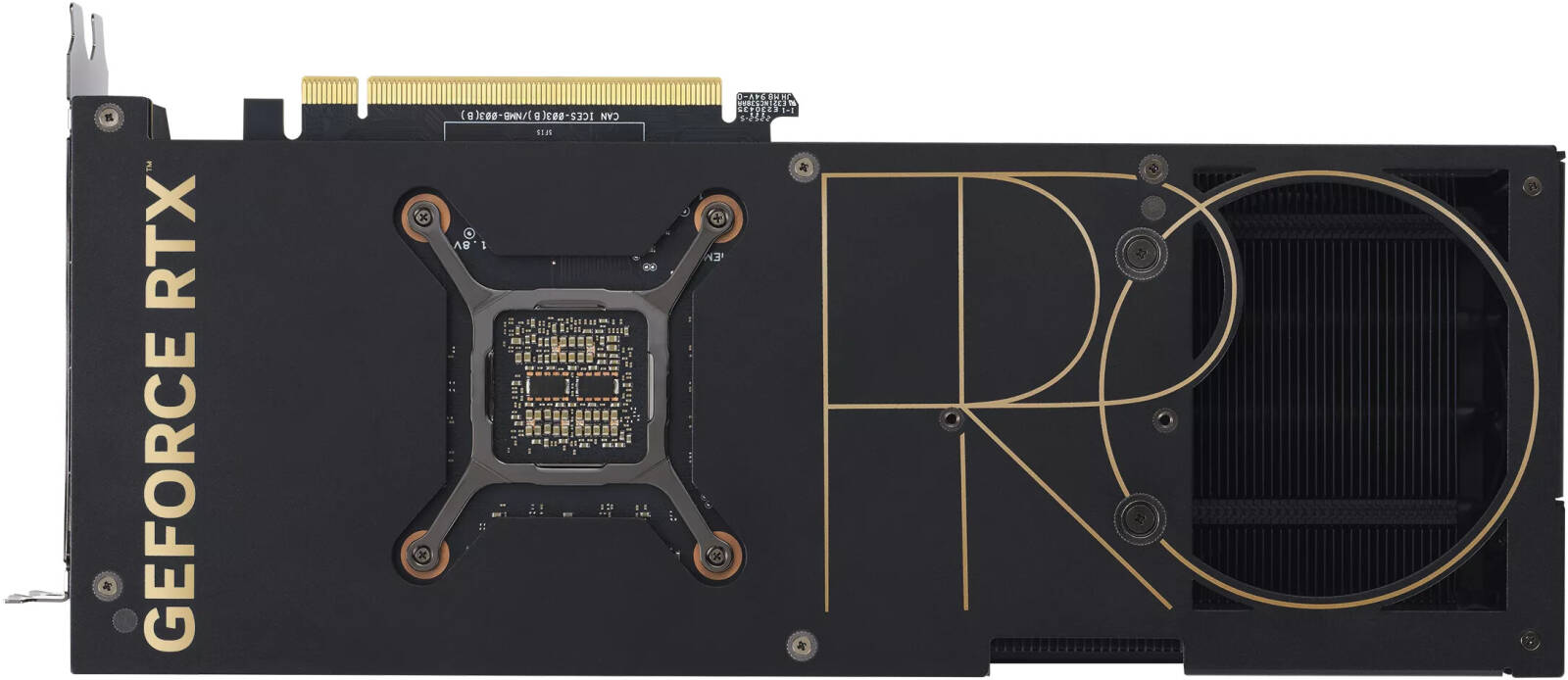

Specifications for Asus ProArt GeForce RTX 4080 SUPER OC Edition Graphics Card, 16GB GDDR6X 256-Bit Memory, 2610 MHz Boost Clock, 23Gbps Memory Speed, 10240 CUDA Cores, PCI Express 4.0 | 90YV0K90-M0NA00
General
Brand
ASUS
Model
ProArt GeForce RTXâ„¢ 4080 SUPER 16GB GDDR6X OC Edit
Microless SKU
148877
Best Sellers Rank
#17 in Video / Graphic Cards
Date first available
31 January, 2024
Shipping Weight
1.75 Kg
Shipping Dimensions
9.00 cm x 41.00 cm x 23.51 cm
GPU
RTX 4080
Chipset Manufacturer
NVIDIA Chipset
Memory Size
16 GB
Multi-GPU Support
--
Max Resolution
7680 x 4320
Memory Type
GDDR6X
Memory Interface
256 Bit
HDMI
Yes
DVI
No
D-SUB (VGA)
No
Display Port
Yes
Effective Memory Clock
23 Gbps
Form Factor
RTX
Interface
PCI Express 4.0
TDP
-- W
Maximum Display Support
4
Cooling
3x Axial-tech Fans
Power Connectors
Specifications
Model PROART-RTX4080S-O16G
Graphic Engine NVIDIA® GeForce RTX™ 4080 SUPER
Bus Standard PCI Express 4.0
OpenGL OpenGL® 4.6
Video Memory 16GB GDDR6X
Engine Clock OC mode: 2640 MHz
Default mode: 2610 MHz (boost)
CUDA Core 10240
Memory Speed 23 Gbps
Memory Interface 256-bit
Resolution Digital Max Resolution 7680 x 4320

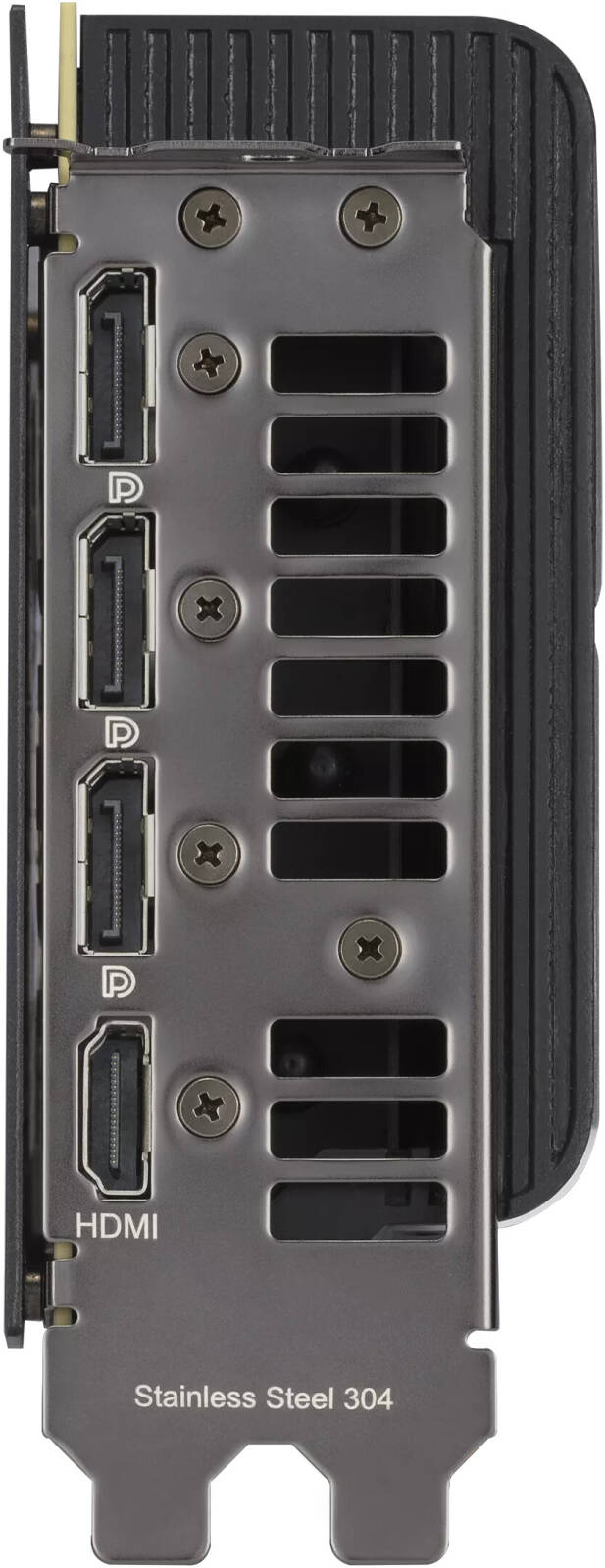

Interface 1 x HDMI 2.1a, 3 x DisplayPort 1.4a
HDCP Support Yes (2.3)
Maximum Display Support 4
NVlink/ Crossfire Support No
Accessories 1 x Collection Card
1 x Speedsetup Manual
1 x Adapter Cable (1 to 3)
1 x ProArt Graphics Card Holder
1 x ASUS Velcro Hook & Loop
1 x Thank you Card
Software ASUS GPU Tweak III & GeForce Game Ready
Driver & Studio Driver (download from
support site)
Dimensions 300 x 120 x 50 mm
11.81 x 4.72 x 1.97 inch
Recommended PSU 850W
Slot 2.5 Slot
